Introduction

This bulk load tool is created to increase users' productivity in Equipment Modeling. Equipment models can be created in any spreadsheet application, such as Excel, LibreOffice Calc, etc. Spreadsheet styles don't affect parsing processes, thus leaves users visually appealing works in their favorite application. Currently, xlsx file format is supported.

There are two ways of parsing the spreadsheet.

First, command-line tool, ExcelPopulateEquipment.exe. Using the command-line tool is convenient in automation, but requires the file to be parsed is not locked (opened). On the other hand, parse-button doesn't require the file closure, but more difficult to automate.

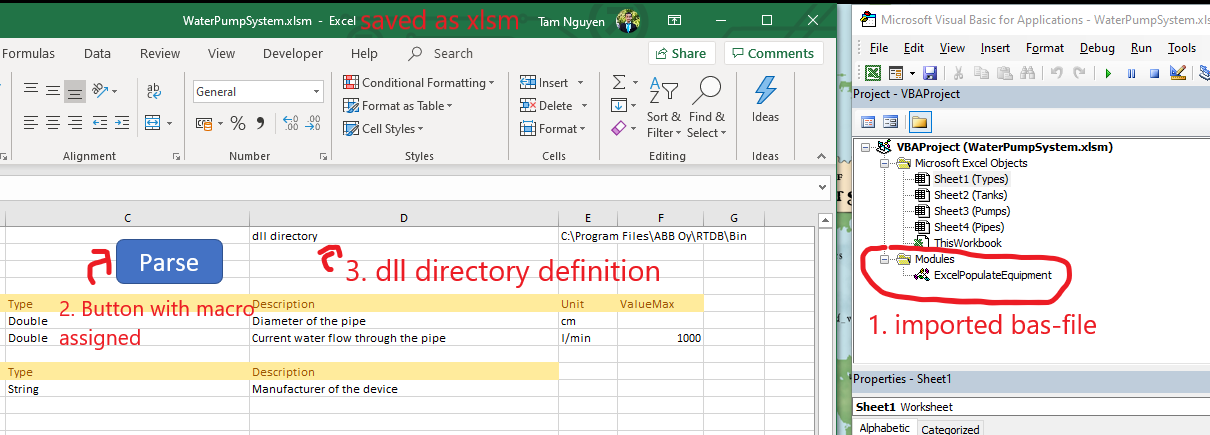

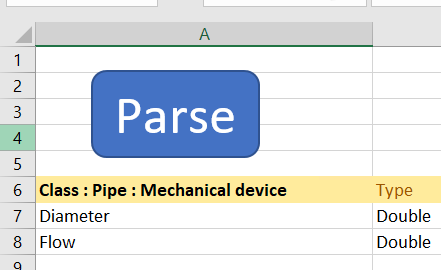

Second, a parse button in Excel application.

When modeling is ready, then parsing and committing the models to RTDB is easier.

Modeling

The modeling format is simple, everything is tables. There are two kinds of tables:

Model: The model table describes the model's properties and its relationship with other's models
Instance: Instance table is a list of instances of a model.

To distinguish between model table and instance table, three keywords are reserved: Class, AbstractClass and Instance. If a header has Class or AbstractClass that means the table is model, and Instance means instance table. AbstractClass is a Class with Abstract attribute set to true.

Model table & Instance table with simple example

Below we have two tables of a simple model and its instance. You may find the simple model code here.

For this model we have defined:

Properties (tank and level)
Data Type
Descriptions
And if the values are Historized or not

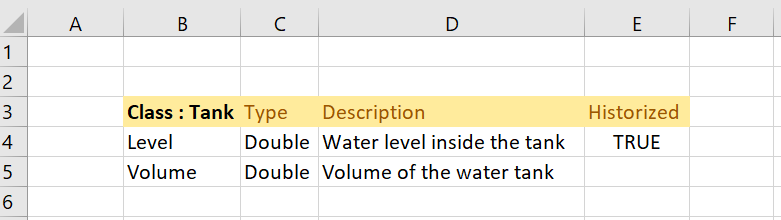

Model-table

As the tables show, only level property will be historized, collected. The table could have many more properties, e.g. EquipmentPropertyInfo , for example Category, ReferenceTarget, Unit, ValueMax, ValueMin, etc. But for example purposes, we want to keep this simple.

Class : Tank	Type	Description	Historized
Level	Double	Water level inside the tank	True
Volume	Double	Volume of the water tank

Instance table

When the model is ready, it can be parsed:

"C:\Program Files\ABB Oy\RTDB\Bin\ExcelPopulateEquipment\ExcelPopulateEquipment.exe" <model name>

Parsing the above model generates following JSON file:

{
  "ClassData": [
    {
      "Class": "Equipment",
      "Instances": [
        {
          "Id": "e712132b-af53-4929-9d0e-e9ed44bef27a",
          "Name": "Tank",
          "ClassName": "Path_Tank"
        }
      ]
    },
    {
      "Class": "EquipmentPropertyInfo",
      "Instances": [
        {
          "Id": "9d0f0e71-c2e5-4a4c-aaea-4b116598b627",
          "DisplayName": "Level",
          "Equipment": "e712132b-af53-4929-9d0e-e9ed44bef27a",
          "Type": 14,
          "Description": "Water level inside the tank",
          "Historized": true
        },
        {
          "Id": "9867d720-e0f1-4c59-ad60-3873ac169f63",
          "DisplayName": "Volume",
          "Equipment": "e712132b-af53-4929-9d0e-e9ed44bef27a",
          "Type": 14,
          "Description": "Volume of the water tank"
        }
      ]
    }
  ]
}

According to the JSON file, models are listed as instances under the class of Equipment, and their properties are also listed as instances under EquipmentPropertyInfo. The JSON above can be committed to a database remotely:

"C:\Program Files\ABB Oy\RTDB\Bin\VtrinCmd.exe" -c wss://<my server>/history -i <my model.json> -u nmea\<username> -ak
# -c connection string.
# -i import JSON data from files.
# -u user name for the connection.
# -ak Accept new server keys.

or locally:

"C:\Program Files\ABB Oy\RTDB\Bin\VtrinCmd.exe" -c <db location> -i <my model.json> -v
# -c connection string.
# -i import JSON data from files.
# -v verbose.

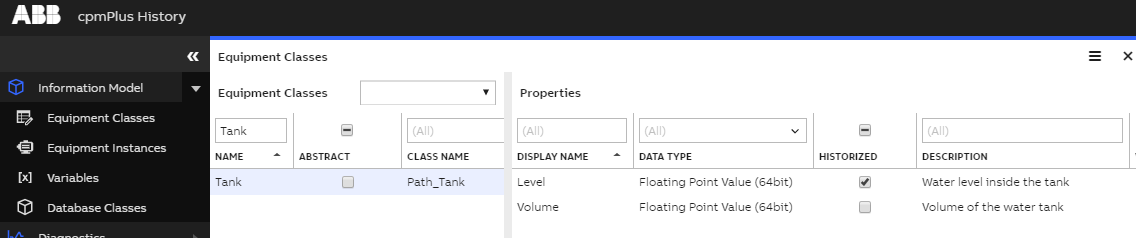

The result can be visualized in Engineering UI:

Tank and its properties in Engineering UI

A model-table can inherit properties from another model-table by appending : <base table name>. For example: Class : Tank : Mechanical device, means Tank inherits all properties from Mechanical device.

Water Tank Bulk Load Tool Example

On our second example, we will more into inheritance.

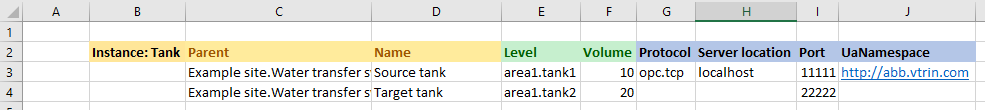

Instance-table

First we need to define our model to create instances for it.

Instance-table starts with keyword Instance : <name of model>. The above example instantiates two tanks, source and target. The header contains the model's properties, location (Parent, Name) of equipment model, and URI parts. Model's properties are for defining properties values. Locations are for defining instance's location Equipment Model. URI parts are to define where data is collected, and also if it is an input or output of data. If some URI parts are empty, then the parsing program tries to use the last value from the same column. However, this can be overwritten, see Water Tank System example for more.

Instance: Tank	Parent	Name	Level	Volume	Protocol	Server location	Port	UaNamespace	Level.output
	Example site.Water transfer system.Tank area	Source tank	area1.tank1	10	opc.tcp	localhost	11111	<http://abb.vtrin.com>
	Example site.Water transfer system.Tank area	Target tank	area1.tank2	20			22222		true

The instance table above generates the following JSON file:

{
  "ClassData": [
       {
      "Class": "DataAccessSource",
      "Instances": [
        {
          "TargetReference": "/Path_Tank[Level]/c9542eac-faa4-4671-b285-bacdec05e7aa|",
          "AccessPath": "opc.tcp://localhost:11111///area1.tank1;UaIdType=s;UaNamespace=http://abb.vtrin.com",
          "OwnerComponent": 0,
          "AccessType": 0
        },
        {
          "TargetReference": "/Path_Tank[Level]/9b67e67b-e31e-42ee-a323-09fbec3176b6|",
          "AccessPath": "opc.tcp://localhost:22222///area1.tank2;UaIdType=s;UaNamespace=http://abb.vtrin.com",
          "OwnerComponent": 0,
          "AccessType": 0,
          "Output": true
        }
      ]
    },
    {
      "Class": "Path_Tank",
      "Instances": [
        {
          "Id": "c9542eac-faa4-4671-b285-bacdec05e7aa",
          "Name": "Example site.Water transfer system.Tank area.Source tank",
          "Volume": "10"
        },
        {
          "Id": "9b67e67b-e31e-42ee-a323-09fbec3176b6",
          "Name": "Example site.Water transfer system.Tank area.Target tank",
          "Volume": "20"
        }
      ]
    }
  ]
}

Instances are listed under Path_<model name>, their locations in Equipment Model are the value of "Name". If a user has defined that historized properties are to be collected, these information instances are stored under DataAccessSource, in the JSON file.

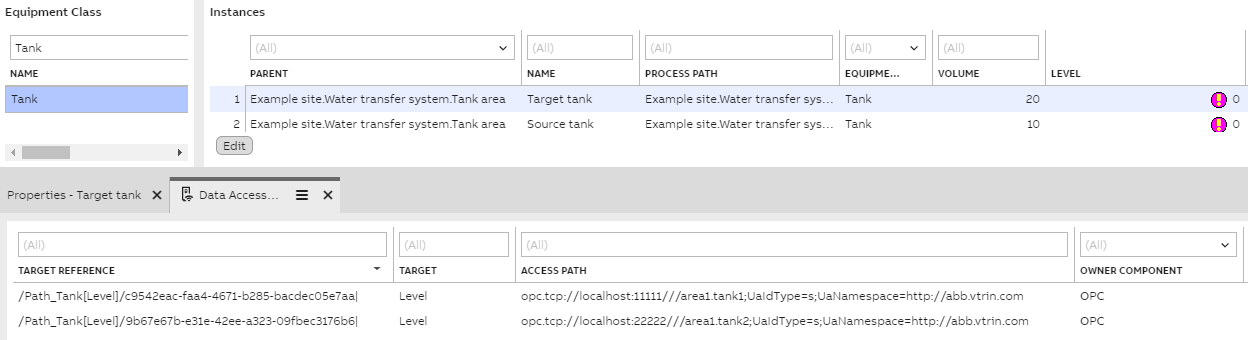

After committing the JSON file, we will get the following Equipment Model:

Good to know

Tables' order doesn't matter.
All header names except the URI parts are case-sensitive, e.g. referencetarget is not the same as ReferenceTarget.
If ReferenceTarget is used to refer an enumeration, make sure the enumeration is already created.
Special class reference can be defined in Type-column as ERef: Tank. See example.
Empty rows are skipped.
Tables with empty headers will be trimmed at the first empty column of that specific table.

Water Pump System Example

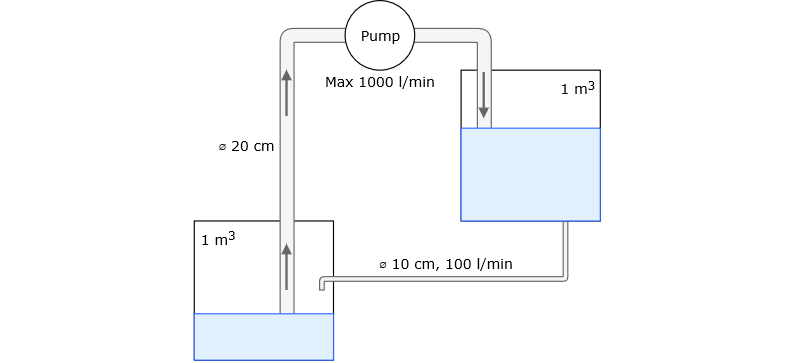

[Water Pump System](https://github.com/cpmPlus/Examples/blob/master/EquipmentModelBulkLoadTool/WaterPumpSystem.xlsx)

Defining the model

Let's model the Water Pump System above. According to the image, there are three types of equipment: Tank, Pipe, and Pump.

The equipments have the following properties:

Tank: level, and volume
Pipe: diameter, and flow
Pump: current power, nominal power, source tank, target tank, operational state, and power state.

Pumps are electrical devices, all electrical devices have voltage-property:

Electrical device: voltage.

Pump inherits all electrical device's properties.

On the other hand, pipes are mechanical devices. In this example mechanical device doesn't have a property.

All devices have a common property, manufacturer:

Device: manufacturer

Modeling the system

AbstractClass : Device	Type	Description
Manufacturer	String	Manufacturer of the device

Device is an abstract class which has one property Manufacturer. Manufacturer type is string.

AbstractClass : Electrical device : Device	Type	Description
Voltage	Double	Device Voltage

Electrical device is an abstract class which has Voltage as property. Electrical device inherits properties from Device, Manufacturer. Voltage's type is double, 64 bits floating-point.

AbstractClass : Mechanical device : Device

Mechanical device is an abstract class that inherits properties from Device. All the above models are abstract, thus can't be instantiated.

Class : Tank : Mechanical device	Type	Description	Unit	Historized
Level	Double	Water level inside the tank	m	True
Volume	Double	Volume of the water tank	m3

Tank has Level- and Volume-property. Tank inherits properties from the Mechanical device class (including from Device). Level is marked as historized. Both properties are double typed, 64 bits floating-point.

Class : Pipe : Mechanical device	Type	Description	Unit	ValueMax
Diameter	Double	Diameter of the pipe	cm
Flow	Double	Current water flow through the pipe	l/min	1000

Pipe has Diameter- and Flow-property. Pipe inherits properties from the Mechanical device class (inhered three properties). Both properties are double. Only Flow-property is capped to a thousand liters per minute.

Class : Pump : Electrical device	Type	Description	Unit	ReferenceTarget
Current power	Double	Current power of the pump	W
Nominal power	Double	Nominal power of the pump	W
Source tank		The tank, from which the pump is pumping		Class:Path_Tank
Target tank		The tank to which the pump is pumping water		Class:Path_Tank
Operational state	Boolean	Is pump running or not
Power state	Boolean	Is pump powered or not

Pump has six properties defined and two from inheritance, eight properties in total. Source tank and Target tank type is Tank, which means the defined Tank-model above. This is also known as class reference.

Instances

After the models are defined, they can be instantiated according to the image. In this example the system has one pump, two pipes, and two tanks:

Instance : Tank	Parent	Name	GOT IGNORED	Level	Volume	Level.UaNamespace	Protocol	Server location	Port	UaNamespace	Level.input	Level.output
	Example site.Water transfer system.Tank area	Source tank	foo	area1.tank1	20		opc.tcp	localhost	11111	<http://abb.vtrin.com>	True
	Example site.Water transfer system.Tank area	Target tank	bar	area1.tank2	30	www.opcfoundation.org			22222			True

Create two tanks for source and target. The location of the source and target tanks in the Equipment Model-tree is the combination of Parent and Names: Example site.Water transfer system.Tank area and Example site.Water transfer system.Target tank. Headers that don't belong to the property list nor predefined list will be ignored, such as GOT IGNORED. Level-property is historized and data collection location is defined in Protocol, Server location and Port columns. The second instance inherits the protocol and server location values of their columns. However, port number and UaNamespace of the second instance have been specifically assigned to 22222 and www.opcfoundation.org, respectively.

Instance : Pipe	Parent	Name	Diameter	Flow	Protocol	Server location
	Example site.Water transfer system	Pipe
	Example site.Water transfer system	Flowback pipe

Create two pipes. Their location in Equipment Model-tree is a combination of Parent and Name. Empty property columns can be removed, see below table.

Instance: Pump	Parent	Name
	Example site.Water transfer system.Pump section	Pump

Create one pump instance in Example site.Water transfer system.Pump section.Pump of Equipment Model.

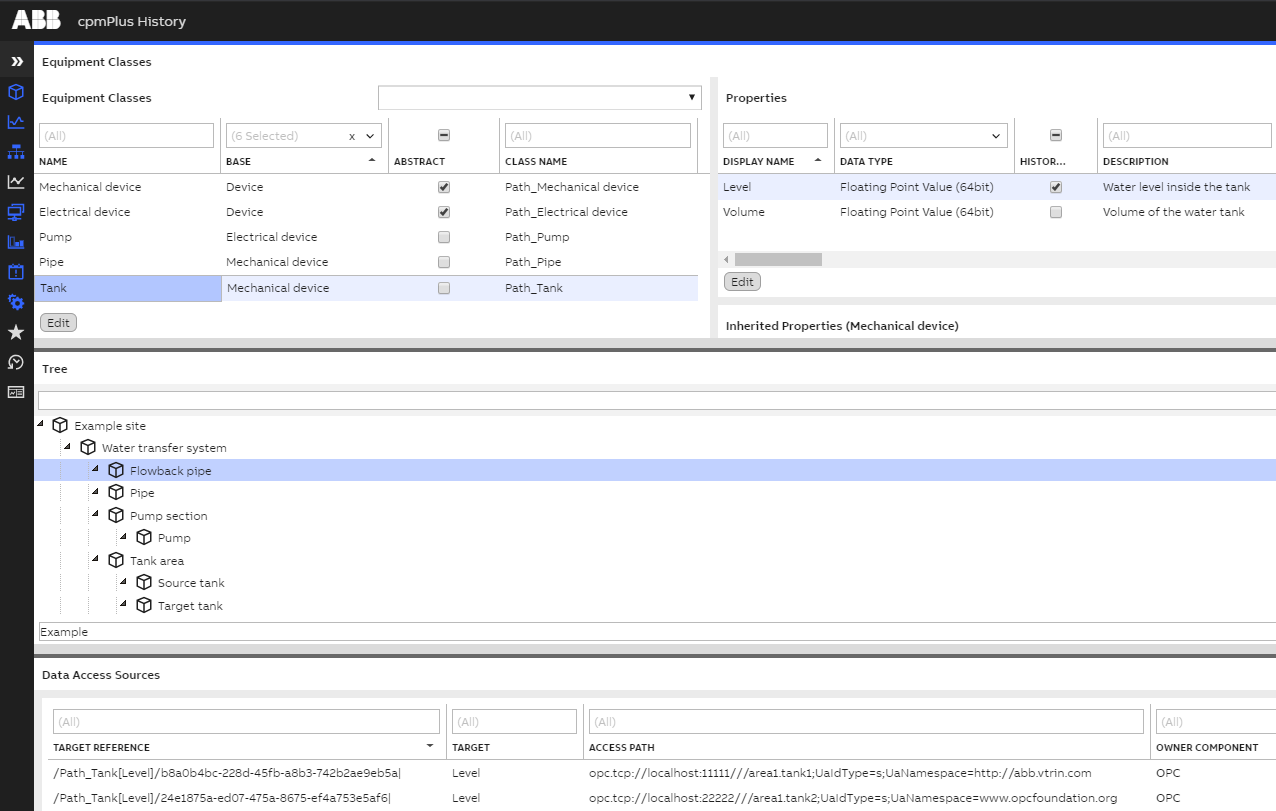

After parsing the above tables, the following JSON file will be generated:

{
  "ClassData": [
    {
      "Class": "Equipment",
      "Instances": [
        {
          "Abstract": true,
          "Id": "e9a13557-db32-467a-aed6-1690331322c3",
          "Name": "Device",
          "ClassName": "Path_Device"
        },
        {
          "Abstract": true,
          "Id": "19e8c8a5-2007-4778-a423-bb18e731a769",
          "Name": "Mechanical device",
          "ClassName": "Path_Mechanical_device",
          "Base": "e9a13557-db32-467a-aed6-1690331322c3"
        },
        {
          "Abstract": true,
          "Id": "f7289e92-1e52-4a6c-b47d-d5b2f4257c20",
          "Name": "Electrical device",
          "ClassName": "Path_Electrical_device",
          "Base": "e9a13557-db32-467a-aed6-1690331322c3"
        },
        {
          "Id": "69ed728d-a04a-4529-8783-7c57642684cf",
          "Name": "Pipe",
          "ClassName": "Path_Pipe",
          "Base": "19e8c8a5-2007-4778-a423-bb18e731a769"
        },
        {
          "Id": "d5f38ddb-86ff-4414-9217-d3e0dc023f15",
          "Name": "Tank",
          "ClassName": "Path_Tank",
          "Base": "19e8c8a5-2007-4778-a423-bb18e731a769"
        },
        {
          "Id": "1d5caeca-31b4-41fc-8d66-d3cd03c28bdb",
          "Name": "Pump",
          "ClassName": "Path_Pump",
          "Base": "f7289e92-1e52-4a6c-b47d-d5b2f4257c20"
        }
      ]
    },
    {
      "Class": "EquipmentPropertyInfo",
      "Instances": [
        {
          "Id": "844baf25-1412-4a09-9f60-fd79de5bdc68",
          "DisplayName": "Manufacturer",
          "Equipment": "e9a13557-db32-467a-aed6-1690331322c3",
          "Type": 18,
          "Description": "Manufacturer of the device"
        },
        {
          "Id": "174fe4c9-be2b-4e64-ae27-2f13c0a682b6",
          "DisplayName": "Voltage",
          "Equipment": "f7289e92-1e52-4a6c-b47d-d5b2f4257c20",
          "Type": 14,
          "Description": "Device Voltage"
        },
        {
          "Id": "1c9ec2f9-7491-4f7f-b43e-1488321e55c7",
          "DisplayName": "Diameter",
          "Equipment": "69ed728d-a04a-4529-8783-7c57642684cf",
          "Type": 14,
          "Description": "Diameter of the pipe",
          "Unit": "cm"
        },
        {
          "Id": "bd455aa0-fdab-4257-b7b8-baf06a65dcef",
          "DisplayName": "Flow",
          "Equipment": "69ed728d-a04a-4529-8783-7c57642684cf",
          "Type": 14,
          "Description": "Current water flow through the pipe",
          "Unit": "l/min",
          "ValueMax": "1000"
        },
        {
          "Id": "0a34ba37-c22f-49fd-bef4-fec200f1896b",
          "DisplayName": "Level",
          "Equipment": "d5f38ddb-86ff-4414-9217-d3e0dc023f15",
          "Type": 14,
          "Description": "Water level inside the tank",
          "Unit": "m",
          "Historized": true
        },
        {
          "Id": "c56da211-ab3a-46e7-8e66-ff18d9c57f18",
          "DisplayName": "Volume",
          "Equipment": "d5f38ddb-86ff-4414-9217-d3e0dc023f15",
          "Type": 14,
          "Description": "Volume of the water tank",
          "Unit": "m3"
        },
        {
          "Id": "46932777-f86c-4d61-9ef0-a18c394d6699",
          "DisplayName": "Current power",
          "Equipment": "1d5caeca-31b4-41fc-8d66-d3cd03c28bdb",
          "Type": 14,
          "Description": "Current power of the pump",
          "Unit": "W"
        },
        {
          "Id": "62b369c9-887a-492d-b9d2-747b6c3d2f5e",
          "DisplayName": "Nominal power",
          "Equipment": "1d5caeca-31b4-41fc-8d66-d3cd03c28bdb",
          "Type": 14,
          "Description": "Nominal power of the pump",
          "Unit": "W"
        },
        {
          "Id": "b1c8456d-008c-4fd8-93b0-bae973f499ec",
          "DisplayName": "Source tank",
          "Equipment": "1d5caeca-31b4-41fc-8d66-d3cd03c28bdb",
          "Type": 241,
          "Description": "The tank that pump is pumping water from"
        },
        {
          "Id": "154b3e9c-a1de-4f8a-9256-2876e2d3d92a",
          "DisplayName": "Target tank",
          "Equipment": "1d5caeca-31b4-41fc-8d66-d3cd03c28bdb",
          "Type": 241,
          "Description": "The tank that pump is pumping water into"
        },
        {
          "Id": "65b6a38e-90a9-40de-b2cb-74e2a5be8d48",
          "DisplayName": "Operational state",
          "Equipment": "1d5caeca-31b4-41fc-8d66-d3cd03c28bdb",
          "Type": 3,
          "Description": "Is pump running or not"
        },
        {
          "Id": "4e5db708-63d1-46c4-bf67-af3295600cd5",
          "DisplayName": "Power state",
          "Equipment": "1d5caeca-31b4-41fc-8d66-d3cd03c28bdb",
          "Type": 3,
          "Description": "Is pump powered or not"
        }
      ]
    },
    {
      "Class": "DataAccessSource",
      "Instances": [
        {
          "TargetReference": "/Path_Tank[Level]/b8a0b4bc-228d-45fb-a8b3-742b2ae9eb5a|",
          "AccessPath": "opc.tcp://localhost:11111///area1.tank1;UaIdType=s;UaNamespace=http://abb.vtrin.com",
          "OwnerComponent": 0,
          "AccessType": 0,
          "Input": true
        },
        {
          "TargetReference": "/Path_Tank[Level]/24e1875a-ed07-475a-8675-ef4a753e5af6|",
          "AccessPath": "opc.tcp://localhost:22222///area1.tank2;UaIdType=s;UaNamespace=www.opcfoundation.org",
          "OwnerComponent": 0,
          "AccessType": 0,
          "Output": false
        }
      ]
    },
    {
      "Class": "Path_Tank",
      "Instances": [
        {
          "Id": "b8a0b4bc-228d-45fb-a8b3-742b2ae9eb5a",
          "Name": "Example site.Water transfer system.Tank area.Source tank",
          "Volume": "1"
        },
        {
          "Id": "24e1875a-ed07-475a-8675-ef4a753e5af6",
          "Name": "Example site.Water transfer system.Tank area.Target tank",
          "Volume": "5"
        }
      ]
    },
    {
      "Class": "Path_Pipe",
      "Instances": [
        {
          "Id": "b7a1198a-f9f8-4c9b-81a7-2c908e52681d",
          "Name": "Example site.Water transfer system.Pipe"
        },
        {
          "Id": "b4fcc330-ef56-4681-a9a3-867f8b55a624",
          "Name": "Example site.Water transfer system.Flowback pipe"
        }
      ]
    },
    {
      "Class": "Path_Pump",
      "Instances": [
        {
          "Id": "0d6fbf47-d88c-4265-beb2-8b43bcc3159b",
          "Name": "Example site.Water transfer system.Pump section.Pump"
        }
      ]
    }
  ]
}

The generated JSON is a bit longer. The complete water system model is ready to be imported to database.

Creating a button for parsing in Excel application

Import RTDB\Config\ExcelPopulateEquipment.bas in VBA editor
Create a shape (button) and assign the imported macro.
Define a directory location of ExcelPopulateEquipmentDLL.dll in excel.
Make sure macro is enabled in the Excel application.
Save the excel file as a xlsm.

Included model setup image below, so users can compare with.

Exporting Tutorials

Here are some examples to export equipments from RTDB to local machine. The exported file is an excel file.

#Exporting All Equipments and Instances from RTDB
ExcelPopulateEquipment --connectionstring C:\RTDB1\rtdbdata

#Exporting Specific Equipments and Instances From RTDB
ExcelPopulateEquipment --connectionstring C:\RTDB1\rtdbdata --export-equipment ThisEquipment --export-equipment OtherEquipment

#Exporting to Specific Location
ExcelPopulateEquipment --connectionstring C:\RTDB1\rtdbdata --output T:\ModelAndInstances.xlsm

#Exporting from Remote RTDB
ExcelPopulateEquipment --connectionstring wss://remotemachine/history --acceptnewkeys --output T:\ModelAndInstances.xlsm --user UserName

Equipment Model Bulk Load Tool - Getting started
