Equipment Model is a predefined meta information model in ABB Ability™ History for modelling industrial assets and processes and implement applications against them.

Equipment model supports inheritance to enable model type hierarchies between similar types of equipment. Please see an example figure below.

Data collection from 3rd party systems

The picture below shows an example of how to configure data collection from OPC server.

1355 — Configuring data collection using property-specific definitions from 3rd party OPC DA server.

DataAccessSource

The class DataAccessSource is used to define from where data is collected.

Property name	Type	Description	Required
Id	System.Object[3]	ID of the instance. Three parts: {OwnerComponent, AccessType, TargetReference}	read-only
TargetReference	String	Reference to object this definition is applied to. Definition can be attached to: • Instance property: `/<classname>[<propertyname>]/\|<instanceprocesspath>`	✓
Target	String	TargetReference resolved to actual object (showed by display name).	read-only
OwnerComponent	Int32 (Enum: DataAccessOwner)	Component for which this definition is done. Two alternatives: 'OPC' (0) or 'Device' (1). String representation defined in enumeration DataAccessOwner.
AccessType	UInt8 (Enum: DataAccessType)	Categorization of Access. Available values: 'Realtime', 'Historical', 'Events'.
AccessPath	String	Based on the owner component. Example: OPC: opcda://<ip_or_dns>/<ProgId>/{CLSID} OPCUA opc.tcp://nodeIP:port/progid//ItemId;namespace=name MODBUS modbus://Node/Port/Unit_Id/A
IN	Bool	Defines if the property is is used to collect data into database
OUT	Bool	Defines if the property used to write values to external data source
Options	String	OwnerComponent specific fine-tunings.

Definitions can be applied to equipment properties, but scripting support needs to be done to allow attaching to property declarations (cDbPropertyInfo) as well.

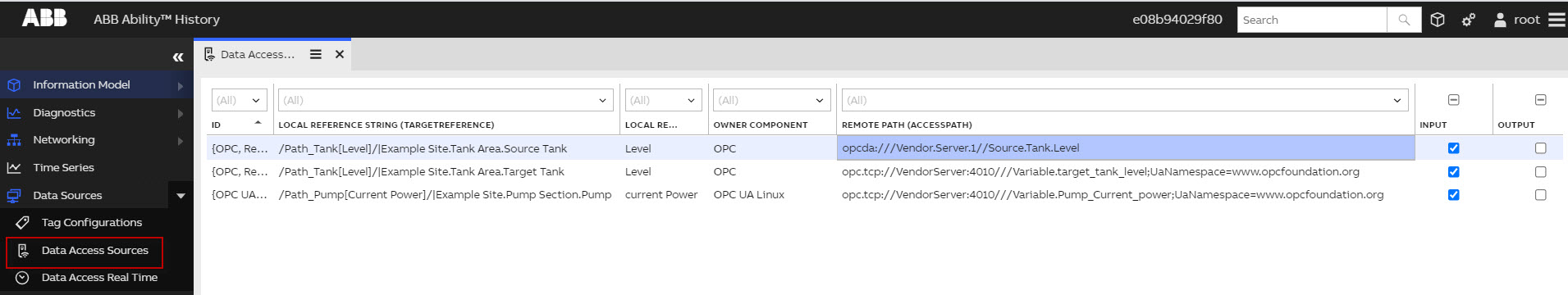

DataAccessSource configuration using Engineering UI

DataAccessRealTime

The class DataAccessRealTime is used to define how data is collected.

Property name	Type	Description	Required
`Id`	`System.Object[2]`	ID of the instance. Three parts: `{OwnerComponent, TargetReference}`	read-only
`Name`	`String`	Name used to give human-understandable identifier for the definition in this node.	✓
`TargetReference`	`String`	Reference to object this definition is applied. Definition can be attached to: • Instance property: `/<classname>[<propertyname>]/<instanceid>\|<instancename>` • Instance: `/<classname>/<instanceid>\|<instancename>` • Class property info: `/<classname>[<propertyname>]` • Class: `/Class/<classname>` In instance property and the instance-specific `TargetReference` definitions, one can refer either using the raw `Id` property of the referenced object, or by the `Name` property. If `Name` references are used, it comes after a pipe symbol `\|`. Syntax is common with VtrinLib object reference syntax.	✓
`Target`	`String`	`TargetReference` resolved to actual object (showed by display name).	read-only
`SamplingInterval`	`System.TimeSpan` (`Int64`, tics, 100ns)	How frequently the device, where data is produced, is sampled. Setting `0` means `'event based'` using fastest mechanism supported in the device.	✓
`PublishingInterval`	`System.TimeSpan` (`Int64`, tics, 100ns)	How frequently data is exchanged between the client and server. Typically the same or longer time period than `SamplingInterval`.	✓
`OwnerComponent`	`Int32` (Enum: `DataAccessOwner`)	Component for which this definition is done. Two alternatives: `'OPC'` (`0`) or `'Device'` (`1`). String representation defined in enumeration `DataAccessOwner`.
`Options`	`String`	`OwnerComponent` specific fine-tunings.

Rules to be followed in the OwnerComponent link, when DataAccessRealTime is interpreted:

if InstanceProperty is having definition -> USE IT
else if Instance is having definition -> USE IT
else if Instance’s parent (recursively) is having definition -> USE IT
else if ClassPropertyInfo is having definition -> USE IT
else if Class is having definition -> USE IT
else move up in class_inheritance

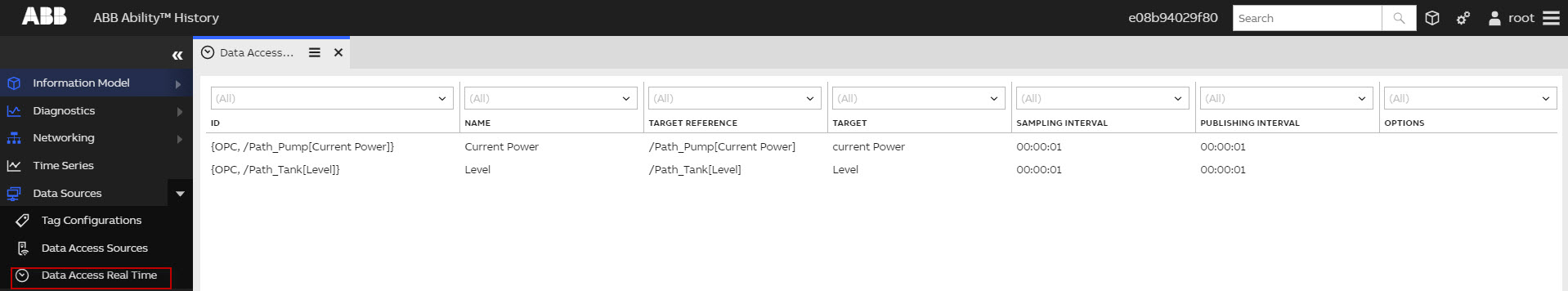

DataAccessRealTime configuration using Engineering UI

DataAccessEvents table

The class 'DataAccessEvent' is used to configure the events subscription from OPC Classic and OPC UA.
The appropriate Owner Component has to be selected based on the event source.

Event Configurations

Attribute	Requirements
Id	Read-Only field. UUID type. Used as the primary key to acquire full information of a record
Name	Name used to give a human-understandable identifier for the definition in this node.
Owner Component	Component for which this definition is done. Options: OPC* - For Classic OPC AE OPC UA Linux* - For OPCUA
Target	A comma-separated list of target database tables to where to store the events Supported values: OpcEventLog EquipmentEventLog OpcEventLog,EquipmentEventLog
AccessPath	Example: OPC: opcda://<ip_or_dns>/<ProgId>/{CLSID} For 800xA: opcda://172.16.16.74/ABB.OPCEventServer.1/{D2BA5EF9-84CA-489E-B83B-0CB157FBB0EB}/ For Matrikon: opcda://HOST1/Matrikon.OPC.Simulation.1/{F8582CF2-88FB-11D0-B850-00C0F0104305}/ OPCUA opc.tcp://nodeIP:port;UaQueueSize=100;UaIdType=i;UaNameSpace=name opc.tcp://HOST1:48010///2253;UaQueueSize=100;UaIdType=i;UaNamespace=http://www.unifiedautomation.com/DemoServer/
Filter	Defines the UA fields to be excluded. Use keyword ExcludedUaFields. The format is ExcludedUaFields=uafield1,uafield2,uafield3
Options	Optional definitions for the event collection and storing in format Keyword=Value;Keyword=Value. The following keywords can be used: Buftim* = defines the buffering time in seconds (the default is 10). For OPC UA this defines the publish interval of the subscription. Fields* = defines the source and target fields. The default value contains all possible standard event attribute collections currently supported by the OPC client. (See the list of them in the UaFields documentation linked above)\ NOTICE*: Currently, OpcUaClient ONLY support UaFields which are defined by the OPC foundation standard. Their namespace index are 0.

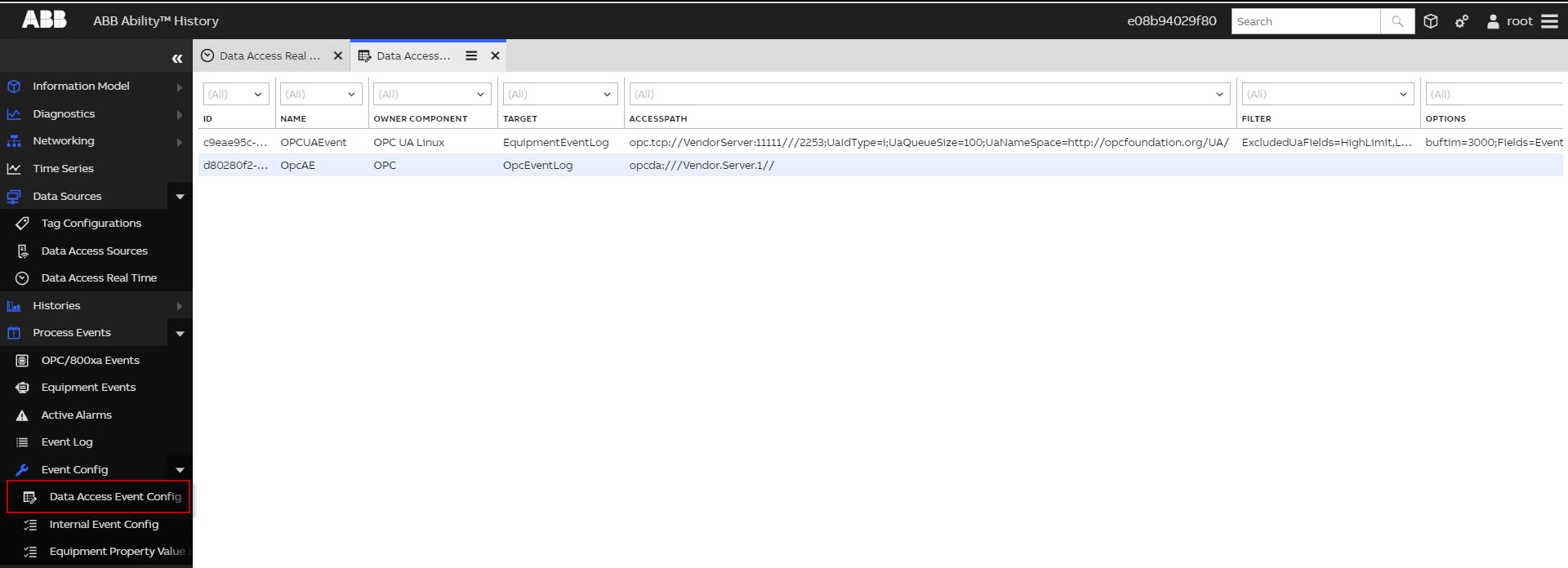

DataAccessEvent configuration using Engineering UI
