Equipment Model is a predefined meta information model in ABB Ability™ History for modelling industrial assets and processes and implement applications against them. Equipment model has built-in support in time series handling and there are lots of support in tooling for equipment model engineering starting from data acquisition and ending up to calculations, visualization, public APIs, and external systems data transfer.

Please find further information on time series handling under time series concepts.

Equipment model supports inheritance to enable model type hierarchies between similar types of equipment. Inheritance allows common properties to be automatically available for all the inherited types. For example a base equipment type could be an "electrical apparatus" from which "electric motor" is derived from and this could further be inherited as a "low voltage motor". We will look at an example further below.

Furthermore equipment instances can be organized in hierarchies for multiple purposes. Each equipment is referred to as an instance and each instance of an equipment model type is placed at least in one logical hierarchy. The purpose of this logical hierarchy can be a process hierarchy, locational hierarchy, or any logical or natural hierarchy. As an example, a hierarchy can contain process paths like Site.Production line.Process unit.Equipment. Also additional hierarchies can be created for other purposes.

The unified equipment model presentation reduces efforts while communicating between systems and subsystems. The ability to collect time series history for an equipment property is one of the major advantages when considering the adoption of the Equipment Model. It also allows the dynamic addition of new properties to production systems, simplifying the deployment of new features. Adding new equipment instances to an existing system is also straightforward. The default values defined in the equipment model configuration serve this purpose together with pre-defined history data collection attributes.

Modeling

Equipment model provides way to model the real-world assets, describe processes and implement applications. Equipment model reduces manual engineering work and improves semantics of systems and subsystems. It also allows flexibility with dynamic addition of new properties and simplifies deployment of new features.

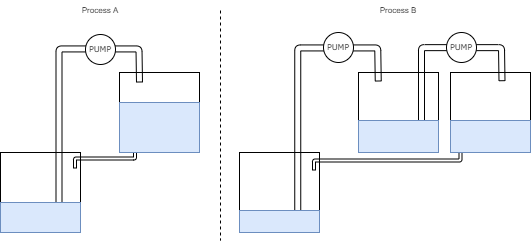

In the picture below you can see an example setup of two processes; Process A and Process B.

Here we start the equipment modeling by creating equipment for the devices of both processes. And from there we can again add properties such as "manufacturer", "power" and "pump".

Actual equipment instances can be created from the models and organized to hierarchy. Equipment model hierarchy for the above process could look like this:

Water transfer system
├── Process A
|   ├── Tank section
|       |   ├── Source tank
|       |   └── Target tank
|       └── Pump section
|           └── Pump
└── Process B
    ├── Tank section
        |   ├── Source tank
        |   ├── Middle tank
        |   └── Target tank
        └── Pump section
        	├── Pump 1
            └── Pump 2

Equipment model

An equipment model has the following attributes:

We will look more into these in our Equipment Model example. Example model definitions you may find here.

Equipment property

Equipment properties are data type specifications for the equipment model properties. For example a real life pump may have an equipment model "Pump". Equipment property of the pump could be "Nominal power" that defines a numerical property, which has a unit "W". The Equipment Model supports multiple data types, which can be found from the Supported data types table.

The equipment property has several attributes and some examples are listed below. Please find the full list here.

*Application Type: If the value is nonzero, a special action is performed when data is produced to the property as the current value or via the history maintenance. The ApplicationType = 1 indicates a property that holds a production grade identifier, and causes activations of the RTDB-GradeServer service.

Example model

Examples of Equipment Model definitions and properties will be further discussed in Example Equipment Models Model Definition section.

Supported data types

These are all the data types that the equipment property supports.

Notes:

• *Max string and array lengths are for the ABB Ability™ History default configuration and can be altered from the database configuration.
• **The current version of ABB Ability™ History does not support history collection for string(max)[max] properties.
• ***The string(max)[max] combined size is limited to 16340 bytes. BLOB storage is currently not supported.

For strings, the maximum value is the maximum supported Unicode character code. Strings use 1-3 bytes per character, depending on the character code + length.

For arrays, the length must be specified as in [], e.g., int32[512] to get an array of 32-bit integers with a maximum length of 512.

The maximum array/string length does not affect the disk space consumption for values in history but does affect the disk and memory consumption of the property, so it is recommended to keep it reasonable.

Referencing other equipment

To create more complex structures than a tree hierarchy, the equipment property definitions support the use of references. In other words, an equipment property can point to other equipment of the selected type. This type of reference property can be used to tie together, for example, a pump and the tanks it is connected to, just like in our equipment model tutorial. However, it is up to the application logic to decide how the references are defined.

In our Engineering UI referencing can easily be done under the Equipment Instances display by adding the process path of the referenced Equipment to the value cell of the particular instance.

Instance references can be used to make links between equipment instances. They allow the construction of different topologies, such as networks and graphs. By default, each equipment instance has one parent instance, except for the root node. Instance references can be used to refer to certain types of instances including such instances that have been inherited from the original referenced model.

Equipment instance

Equipment instance is a representation of the real-world equipment. In our example process, where the pump is moving water from a tank to another through pipes, each of the tanks, pipes, and the pump would have their own equipment instance.

Equipment instances are stored in the primary hierarchy that is called Path. Each equipment model has a virtual class that collects all its instances and they are accessible through the data abstraction interface VtrinLib. The naming convention has the syntax "Path_[Equipment model]", e.g., "Path_Pump".

Equipment instance names support categorization by their nature. By naming a tank, for instance, to "Example site.Water transfer system.Tank area.Tank 1" will generate a tree with a similar structure. Multiple pieces of equipment together can generate the following kind of tree structure.

Example site
└── Water transfer system
    ├── Tank area
    |   ├── Tank 1
    |   └── Tank 2
    ├── Pump section
    |   └── Pump
    └── Tank

Equipment Instances will be further explained in our Example Equipment Model's Equipment Instance section.

Property value

Property value is an equipment instance specific property value that can also be a time series (historized property).

Property attributes

Some of the equipment property attributes can be overwritten at the instance level. Such are:

• ValueMin
• ValueMax
• Unit
• Events
• TargetHistory
• HistoryCollectionTemplates
• CompressionMethod
• CompressionError
• SubstituteMethod
• SubstituteValue
• RecordingMethod

List of Equipment property attributes

Behavior pattern – EquipmentPropertyInfo holds the list of equipment property attributes with default value, and description whether they can be overwritten. Overwritten attribute values are stored in EquipmentPropertyValue.

• Overwritten properties can be set in runtime and are taken into account respectively
• All the behaviors for property attributes will act accordingly: if overridden, related property attribute is seen as stated in the instance, if not – as stated in the class definition
• If override property is deleted from the instance, related behaviors restore to act based on the class definition.

EquipmentPropertyInfo attribute override in Engineering UI

Overriding property attributes in Engineering UI is simple and allows you to do changes on Instance level. Yet these changes require a few things we will go through below.

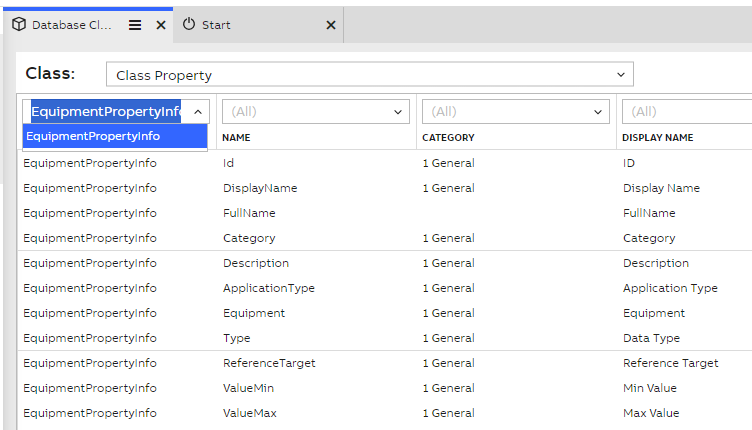

First to see all the EquipmentPropertyInfo attributes we go to Information Model > Database classes. On this table we can see all property names grouped by classes.

To see only a list of EquipmenPropertyInfo attributes and all their detailed information, we can first choose Class from dropdown menu and in our case it will be Class Property. Then to the search box on Class Name column we will type EquipmentPropertyInfo. The Name column shows us how the names are written in code. This information we need in the next phase.

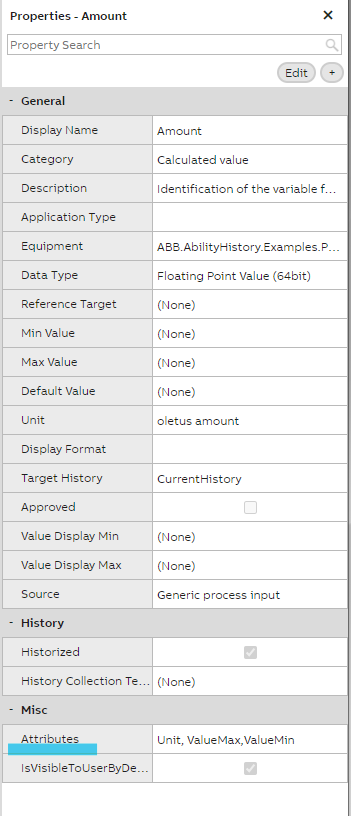

Now on Engineering UI main menu we can select Information Model > Equipment Classes and here choose the Equipment Model property we want to modify. Then we open the property editor tool window and here we can see the property attributes.(see picture below). On default this is empty, but we can insert here the attributes we want. Please be advised to type the names as they are displayed on the Database classes EquipmentPropertyInfo Name column. Example shown below. Remember to commit changes to save them.

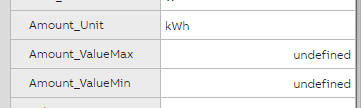

Lastly we can go to our Information Model > Equipment List display and here open the Equipment Model property editor to see the attributes we just added. If some of these were already defined when creating the model, the values will be shown here. Otherwise these are marked as "undefined" or simply empty. If you define overriding attributes to multiple properties, these will all be listed here.

Equipment Model example of attribute override

This section presents an example of the property attribute override behavior. We'll use the Example equipment model for this.

The example equipment model has an equipment type Pipe, from which two equipment instances, Main pipe and Flowback pipe, are created. The Pipe type has a property Flow, which tells how much liquid can flow through the pipe per minute. The ValueMax attribute for this property is set to 1000, which sets the maximum limit for the property's value to 1000 l/min.

The maximum flow for Main pipe is 1000 l/min, so this needs no changes. However, the maximum flow for Flowback pipe is 100 l/min. We'll use a property attribute override to set ValueMax to 100 for Flowback pipe.

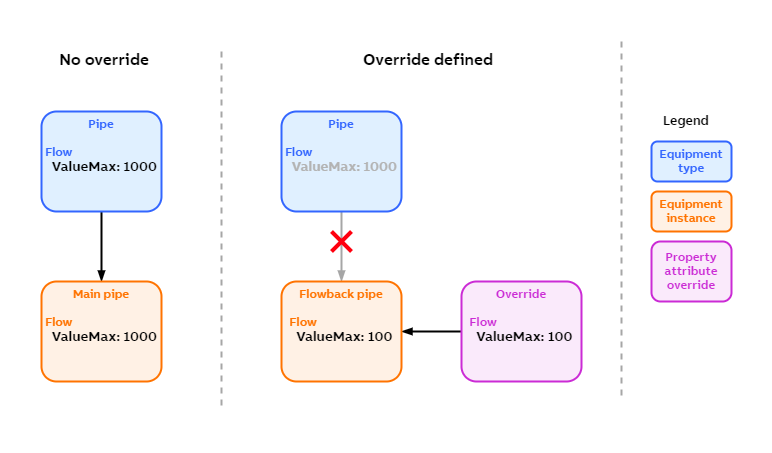

The picture below illustrates the attribute property override behavior. On the left, no overrides have been defined for the Main pipe's Flow property, and therefore ValueMax gets its value (1000) from the equipment property definition.

On the right, a property attribute override has been defined for Flowback pipe's Flow property. Therefore, the ValueMax attribute gets its value (100) from the override, instead of using the value from the equipment property definition.

Code example

string attributedname = "attributed";

var instance = mSource.Classes["EquipmentPropertyInfo"].Instances.GetInstanceSet("DisplayName=?", attributedname)[0].BeginUpdate();

instance.SetRawPropertyValue("Attributes", "ValueMin,ValueMax"); //override attributes
instance.CommitChanges();
mSource.EventBarrier();

var car = mSource.Classes["Path"].Instances.GetInstanceByName("Garage.InstanceName ");
Assert.IsNotNull(car.Class.GetProperty("attributed_ValueMin")); //overridden property

Data source attribute

One use of property attributes is the data source attribute. It is used by data providers such as OPC UA Client to preserve the original data source for the property. Usually this information is accessible in Data Access Sources -table but the property attribute can write this information to the Equipment instance. This allows the information to be published with Netsync to other systems. The syntax for the data source field value is the following

<base datasource name><--<base datasource name><--<data provider>:<data provider path>

for example a property MotorSpeed can have a value of 15 and it has an attribute called datasource which has a value of:

site/d:\rtdbdata<--collector/d:\rtdbdata<--OPC_UA:opc.tcp.//192.168.1.6:48010///Data.Scalar.Double

To get this feature into use add 'DataSource' text content to the EquipmentPropertyInfo's property 'Attributes'. This setting should be done for all those properties where you want original datasource to appear as part of Equipment model.

Multiple instance hierarchies

In addition to the main hierarchy, it's also possible to organize equipment instances into secondary hierarchies. This way, it's possible to have different views on the same equipment, each suitable for a different use case.

For example, the primary hierarchy can be organized to represent the physical layout of the equipment on the site, and your site could look as follows:

Example site
├── Area 1
|   ├── Tank section
|   |   ├── Source tank 1
|   |   └── Target tank 1
|   ├── Pump section
|   |   └── Pump 1
|   └── Pipe section
|       ├── Main pipe 1
|       └── Flowback pipe 1
├── Area 2
|   ├── Tank section
|   |   ├── Source tank 2
|   |   └── Target tank 2
|   ├── Pump section
|   |   └── Pump 2
|   └── Pipe section
|       ├── Main pipe 2
|       └── Flowback pipe 2
├── Area 3
...

In the above primary hierarchy, all equipment instances are placed under the areas they physically belong to.

If in addition to the primary hierarchy, we'd like to see our equipment grouped by their type. We could define the following secondary hierarchy:

├── Pumps
|   ├── Pump 1
|   ├── Pump 2
|   ...
└── Tanks and pipes
    ├── Source tank 1
    ├── Target tank 1
    ├── Main pipe 1
    ├── Flowback pipe 1
    ├── Source tank 2
    ├── Target tank 2
    ├── Main pipe 2
    ├── Flowback pipe 2
    ...

In the hierarchy above, we have to categories: Pumps and Tanks and pipes. We could just as well have defined a hierarchy with the categories Pumps, Tanks, and Pipes. How you want to define these hierarchies depends on your use case and what best serves your needs.
