Introduction

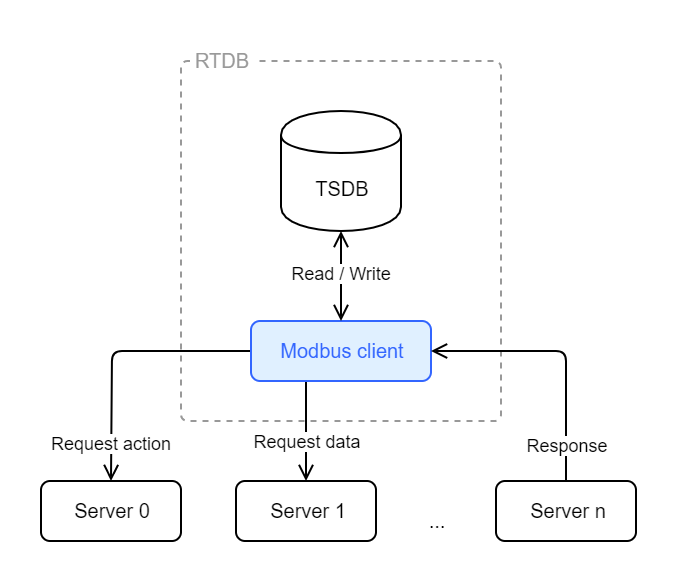

Modbus is a serial communications protocol based on request-response architecture. In request-response architecture, there is one client (master) and many servers (slaves). The request is issued by the client, then a server either responds or takes action. These request-response-cycles are possible by passing messages. There are several Modbus protocols, thus several different message headers (source):

Thus, industrial electronic devices (servers) could be monitored and controlled by the client (master) of that network.

Modbus was developed with industrial applications in mind. It is easy to deploy and maintain, it moves raw data without placing many restrictions, and it is openly published and completely royalty-free. Modbus has become a de facto standard communication protocol and is now a commonly available means of connecting industrial electronics devices. More information about Modbus can be found from the Modbus' official website.

Modbus and RTDB

RTDB Modbus connection (RTDB_EcModbusMaster) implements a master-slave connection to Modbus slaves over TCP/IP. The functionality of the RTDB_EcModbusMaster process and variables parameters are defined in the "EcCrossrefs" or "Tags" and "DataAccessSources" and "SimpleConfig" tables.

The current implementation can read 16-bit Modbus holding and input registers and the 1-bit coils and discrete inputs. By default, the address of the register defines which read function is used to read the register by using the standard 5-digit traditional or 6-digit extended address notation, i.e.:

• 1 - 9999, or 000001 - 065536: function code 1 (Read Coils)
• 10001 - 19999, or 100001 - 165536: function code 2 (Read Discrete Inputs)
• 40001 - 49999, or 400001 - 465536: function code 3 (Read Holding Registers)
• 30001 - 39999, or 300001 - 365536, function code 4 (Read Input Registers)

Also, non-standard special support if the configurator is unable to use leading zeros in coil addresses:

• 200001 - 265536: : function code 1 (Read Coils)

📘

Note

In order to use the extended address format, exactly six digits must be preset.

The program supports also output Tags. The program will cyclically write the current value of the tag in the given frequency. Writing is not enabled by default but it needs to be enabled with a SimpleConfig setting. (version info: coil, discrete input and write support needs 5.0-1/2018-10-24 or 5.2/2018-10-24. Output coil write needs 5.2/2019-04-05 version. Other than 16-bit integer write support and multi-register write function needs version 5.3/2020-01-08).

If a single register is stored to an RTDB variable, it is treated as a 16-bit signed integer by default. It is possible to combine up to 4 register values to a single RTDB variable, and the combination can be interpreted as a signed or unsigned integer, or single or double-precision floating-point number. The link tries to read the multi-register values with the same read, if possible (usually the addresses of multi-register values are consecutive, so it is always possible to read them in one read function call because one read can return up to 125 consecutive addresses by default).

There are also other Modbus protocol versions that present longer data types differently but the link does not currently support them. For example, the Enron Modbus protocol defines that the registers 5001-5999 contain 32-bit integer values and the protocol does not differentiate between register numbers and protocol level addresses (in the original Modbus protocol, for example, the register 40001 maps to protocol level address 0 and function code 3). If you accidentally try to communicate with an Enron Modbus a protocol error will result because the returned answer format from the read function is incorrect and the link stores the current value as invalid.

The link supports only big-endian 16-bit register data values (i.e. the register values transferred in the line must come with the most significant byte first). The order of 16-bit words in multi-register values can be anything because the register addresses of each part are configured separately. The link supports also transport of characters strings that are stored as zero-terminated UTF-8 characters in register values two bytes per register. The storing order of the 8-bit bytes in the 16-bit register value can be specified in the configuration.

RTDB_EcModbusMaster cannot act as a Modbus slave.

RTDB_EcModbusMaster does not support the Modbus security application protocol (mbaps) protocol. If the connection to the remote slave uses a non-dedicated network (typically anything else than a direct Ethernet cable), an SSH tunnel should be used between the master and slave and in addition some firewall settings that would restrict the use of the tunnel port.

The RTDB_EcModbusMaster needs Windows 2008 R2 or later. It does not run in older versions (such as Windows 2008) because of a .NET Framework crash issue.

Installing & Defining service processes

The RTDB_EcModbusMaster service is defined with the following command RTDB systems that use the standard application templates:

CSCommon_cmd -setini "%APP_ROOT%\Config\FeatureInstall\APP_FeatureInstall_Selections_Custom.ini" SelectedFeatures RTDB_EcModbusMaster 1

After executing the above command, Run the below command to install RTDB_EcModbusMaster as a service

"%APP_ROOT%\Config\FeatureInstall\App_Featureinstaller" /install

License

A license for a MODBUS master service must be defined with the following keywords:

• section name “ModBus Master”

• The program reads the license file only during startup. All instances of RTDB_EcModbusMaster need to be restarted to get the new license file into use.

General configuration

The configuration tasks consist of editing the RTDB database tables that contain the MODBUS master configuration data. The database tables are usually maintained with the Excel files derived from RTDB_Populate_Database.xls.

By default, all data retrieved from MODBUS slaves is stored in the CurrentValues and CurrentHistory tables, and all aggregates defined for the variables. However, if the variable history compression method is Cluster Compression (value 1), and the recording method is Clustered Storing (value 2), the values are stored to ClusterHistory. If CVRate is defined for the variable, the values are also stored to normal histories with that rate. Refer to the SimpleConfig and EcCrossRefs configuration.

The configuration settings do not take effect before restarting the RTDB MODBUS master.

The process can be restarted with Control Panel → Administrative tools → Services dialog.

The process can also be restarted with the CommandQueue command Restart. For example:

INSERT INTO CommandQueue(RcvId, CmdText) values(26, 'Restart')

In addition to the traditional EcCrossRefs style configuration, the MODBUS master can also be configured with the Tags table and with the DataAccessSources and DataAccessRealTime tables.

SimpleConfig Settings

The general configuration settings for the MODBUS master reside in the database table SimpleConfig, where SectionName is “RTDB-EcModbusMaster”. If other MODBUS master processes are to be configured, the sectionname is the same as the name of the actual MODBUS master process.

When the Tags configuration is enabled (with the DataSources setting), most SimpleConfig settings are dynamically taken into use. They are marked with (D). Other settings require that the program is restarted to have effect. The KeyNames in the SimpleConfig are:

Configuration by Using the Tags and DataAccessSources Tables

The Tags table is usually maintained with the Vtrin dialog. The DataAccessSources table is new to RTDB 5.0-1, but it can be installed to RTDB 5.0 version separately with 5.0 SR2 version.

Note: by default the Tags and DataAccessSources configuration is disabled, and the program uses EcCrossRefs instead. To enable them (and disable EcCrossRefs), define the following SimpleConfig setting:

INSERT INTO SimpleConfig(SectionName, KeyName, StrValue) VALUES('RTDB-EcModbusMaster', 'DataSources', '*')

The DaType setting in Tags must be 3/Modbus, and the OwnerComponent setting in the DataAccessSources and DataAccessRealTime tables must be 2/Modbus. The DaFrequency or SamplingInterval defines the interval for how often the result items are written (the link currently truncates the value to a whole amount of milliseconds). The smallest value of all items defines the polling frequency. The syntax of the “Id” string in DataAccessSources uses the Vtrin ClassRef syntax (see the OPC client documentation for a description and example configuration). The PublishInterval in DataAccessRealTime is ignored (the Modbus Master uses only UpdateRate).

The DaPath and AccessPath syntax in the Tags and DataAccessSources table has the following format:

modbus://Node/Port/Unit_Id/A/A1/A2/A3/D/F/U;Options
modbus://Node/Port/Unit_Id/A[count]/D/F/U;Options

where:

The above entry with default values can be expressed as:

modbus://Node///A

The Modbus addresses can be specified either with a 5- or 6-digit notation. Input registers have the range 30001-39999 or 300001-365536, and holding registers have the range 40001-49999 or 400001-465536.

Examples:

Read the Input register 300010 as a 16-bit signed integer (having values -32768 .. 32767):

modbus://Node///300010

It is recommended to use the 6-digit format, as in above, but the 5-digit style, the same would be written as:

modbus://Node///30010

Read the Input register 300010 as a 16-bit unsigned integer (having values -0 .. 65535):

modbus://Node///300010/U

Read a discrete input bit value from address 100001:

modbus://127.0.0.1/10001/0/100001

Read an output coil bit value from address 000001:

modbus://127.0.0.1/10001/0/000001

Read holding registers 400010, 400011, 400012 and 400013 and interpret them as a double precision float (note: this assumes that the slave stores the value as a 64-bit IEEE double precision format to 4 consecutive 16-bit register values so that the most significant 16-bits are in the highest register address):

modbus://Node///400010/400011/400012/400013/D

Or, if the Slave stores the most significant 16 bits in the lowest register address, the addresses must be reversed:

modbus://Node///400013/400012/400011/400010/D

Input registers 300010, 300011 should be interpreted as a 32-bit unsigned integer:

modbus://Node///300010/300011/U

And again, if the Slave stores the most significant 16 bits in the lowest register address, the addresses must be reversed:

modbus://Node///300011/300010/U

Read the Input registers 300001 - 300100 as zero terminated UTF-8 character string

modbus://Node///300001[100]/THL

Example configuration that uses DataAccessSources (this script is for RTDB Core ODBC driver. Therefore the time intervals are present as 100 ns units):

-- Default update rate for Drive1
insert into DataAccessRealTime(id, name, SamplingInterval, PublishingInterval, OwnerComponent, Options) values('/Path_Drive/|Drive1', 'Drive1 default update rate', 25000000, 25000000, 2, NULL);
--
-- Update rate and scaling for MotorTorque property
insert into DataAccessRealTime(id, name, SamplingInterval, PublishingInterval, OwnerComponent, Options) values('/Path_Drive[MotorTorque]', 'Drive MotorTorque default update rate and scaling', 10000000, 10000000, 2, 'Scale1=0.1');
--
insert into DataAccessSources(id,OwnerComponent,AccessType,AccessPath) values('/Path_ACS600[MotorSpeed]/|Drive1',           2, 0, 'modbus://127.0.0.1/10001/0/300001/300002');
--
-- DataAccessSources scaling overrides the DataAccessRealTime setting. However, its SamplingInterval of 10000000 is still used
insert into DataAccessSources(id,OwnerComponent,AccessType,AccessPath) values('/Path_ACS600[MotorTorque]/|Drive1',          2, 0, 'modbus://127.0.0.1/10001/0/300003;Scale1=0.1;Scale0=1000');
--
-- For this entry, the scaling and SamplingInterval of the DataAccessRealTime 'Drive MotorTorque default update rate and scaling' is used
insert into DataAccessSources(id,OwnerComponent,AccessType,AccessPath) values('/Path_ACS600[MotorTorque]/|Drive3',          2, 0, 'modbus://127.0.0.1/10003/0/300063');

It is possible to define additional connection-specific settings, which can be provided in the DaPath setting by using SimpleConfig entries with key names SID_sid_Local and SID_sid_Remote, which contain the EcCrossRefs style settings of the MBSLV entry. The “sid” in the key name is the generated sid value from the DaPath that has the format node/port. For example:

insert into SimpleConfig(sectionname,keyname,strvalue) values('RTDB-EcModbusMaster', 'SID_127.0.0.1/10001_Remote', 'MaxPacket=40;MaxGapInReads=0;SilentMs=100')

Configuration by Using the EcCrossRefs Table

The EcCrossRefs table is usually maintained with the Excel Populator application derived from RTDB_Populate_Database3.xls. This normally resides in the %APP_ROOT%\Config\Variables directory.

The RTDB MODBUS master communicates with one or more MODBUS slaves. The slaves must be introduced to the RTDB MODBUS master. The MODBUS slave definitions reside in the database table EcCrossRefs.

Here is an example of an SQL Insert statement that defines one MODBUS slave:

INSERT INTO eccrossrefs (ProcNumber, TimeClass, OrderBy, CommType, LocalId, RemoteId) VALUES(26, 0, 0, 'MBSLV', 'SID=MB1;ONIDT=EC_MB1_CONNECTION;COUNTERIDT=MB1_COUNT', 'NODE=10.20.30.40;PORT=500;CYCLE=10;UNITID=2;FLUSH=20')

Note: if you have enabled Tags and DataAccessSources configuration (see above), the EcCrossRefs configuration is disabled. If you need to use both styles of configuration in the same database, you need to install a separate RTDB_EcModbusMaster instance. (It must be installed manually, a pre-defined feature for that is not available).

Each slave has a set of groups, which contain the actual variable definitions. Here is an example of an SQL Insert statement that defines one MODBUS slave group:

INSERT INTO eccrossrefs (ProcNumber, TimeClass, OrderBy, CommType, LocalId, RemoteId) VALUES(26, 10, 0, 'MBGRP', 'TimeMult=5', 'SID=MB1')

The meaning of the columns of the ECCrossRefs table is the following:

Each group has a set of variable definitions. Here is an example of an SQL Insert statement that defines one MODBUS variable:

INSERT INTO eccrossrefs (ProcNumber, TimeClass, OrderBy, CommType, LocalId, RemoteId) VALUES(26, 10, 0, 'AI', 'IDT=MB1_DATA1', 'MBADDR=40010;U32HRA=40011;U48HRA=40012;U64HRA=40013;UNSIGNED;UNITID=4')

Diagnostics

The Modbus link produces diagnostics to Messagelog, Diag Log files, Component status, and to user status of current values. The AppTrace setting in SimpleConfig the diagnostic level. The Component status contains information about configuration settings errors and information about server connections.

The user status of current values contain also diagnostics, as follows (currently the texts are not available as UIStrings user status translation texts):

(Version info: user status values are produced with version 5.2/2019-04-06)

See the Modbus slave documentation for the possible reasons for the exception codes, or refer to the general Modbus information from specifications http://modbus.org/specs.php

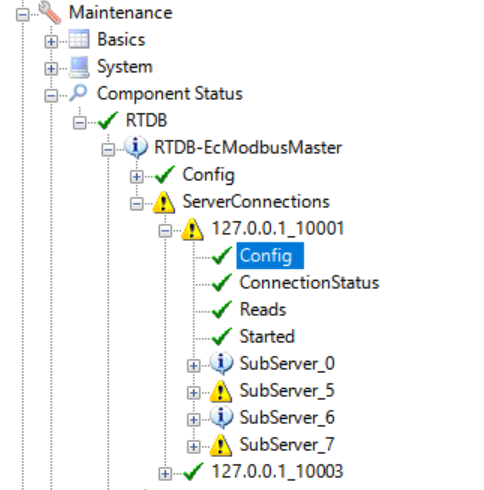

You can verify that different kind of settings were taken into use by checking the component status under RTDB-EcModbusMaster/ServerConnections/serverid/Config that contains an information string value such as: BaseInterval=1000 ms;RcvTmo=2.5;LanguageTag=|358;MaxPacket=125;MaxGapInReads=125;Protocol=TCP;

Server simulator

The Modbus link executable file has a simple server simulator program embedded to it. It can be run as a console program with the following command:

RTDB_EcModbusMaster -slavesimulator [port [-v] ["Modicon"]] [-config "configfile.ini"]

For example:

RTDB_EcModbusMaster -slavesimulator 10001

The -v qualifier enables verbose mode, where the program shows the Modbus functions executed. The "Modicon" switch (note that this is written without a leading "-") changes the simulator to use the Modicon version of the Modbus/TCP protocol instead.

The simulator returns growing 16-bit register values for each address.

The configfile.ini is an .ini file format file that can optionally be provided for testing different data types. However, values defined in the config file do not change. For example:

[RegisterValues]
; The addresses are in this order to present the data as big endian
; So the least significant 16-bits are in the first listed address and so on.
double[411004,411003,411002,411001]=12.234
float[412002,412001]=12.234
uint32[413002,413001]=4000000000
int32[414002,414001]=-1223456
int16[415002]=-12234
uint16[416002]=52234
int64[417004,417003,417002,417001]=9000000000000000000
utf8_LH[418101:100]=|001Here is some English text|358Tässä on vähän suomenkielistä tekstiä
utf8_HL[418301:100]=|999Auto generated text only. In HL order.

Remember that if you want to run the simulator program at the background always after RTDB startup (and stop it when RTDB is stopped), you and define it to RTDB.ini to be run as a subprocess by RTDB_ServiceManager, for example as:

; Add this to RTDB.ini
[MBSIM]
CmdEx=RTDB_EcModbusMaster -slavesimulator 10001 -config "%app_root%\config\mbsim.txt"
[SubProcesses]
MBSIM=ON
