Concept

Introduction

At its core Ability™ History connects to a huge number of industrial devices and collects measured data. The collected data provide relevant information on manufacturing processes or equipment health. Various calculations and automatic data processing are used to analyze the data to identify relevant events that may affect production efficiency or cause device faults. These events may require immediate user actions to avoid production losses or asset damages. Notification service can be used to notify users about such events also when the user is not actively monitoring the process.

The notification service is part of ABB Ability™ History product functionalities. It is a tool to trigger notifications from database events and send notifications via desired methods to users who have subscribed to them. A triggering event can be any creation or update to an instance in the database that makes it a generic service and also for implementing various kinds of workflow applications.

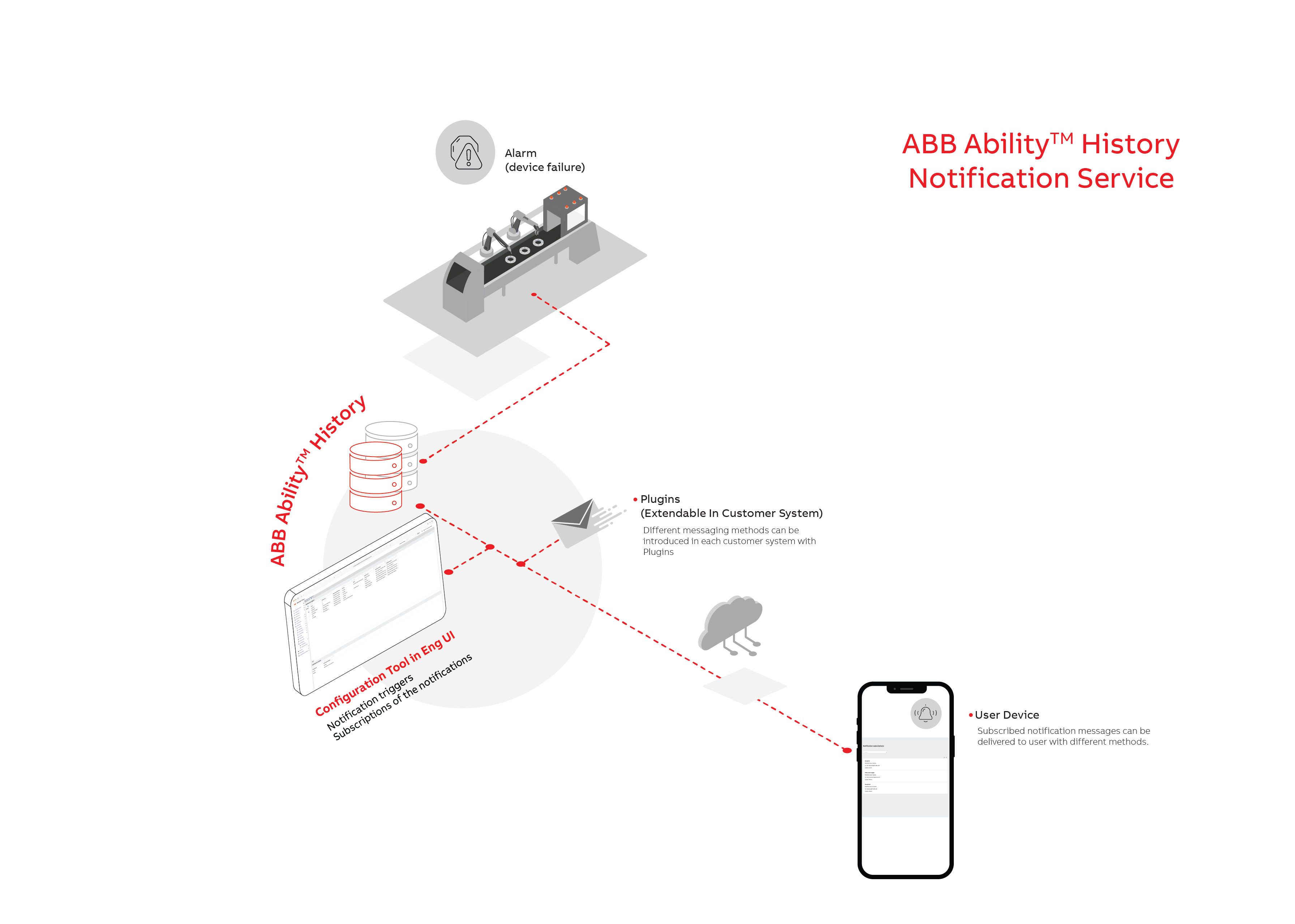

The picture below gives an example of the Notification Service. A device failure occurs in the factory production line and this causes an alarm that is collected by ABB Ability™ History with OPC UA. With engineering UI, a user with admin rights can define a notification to be triggered from the particular type of alarm, and the format of the content of the notification to contain relevant information such as device ID and description of the failure. Users interested in this notification can subscribe to it to be delivered to them with a chosen method, such as email, signal, or other. Please note that the Notification Service is for instant messaging, and it does not store the notification messages.

Next, we will go through each concept of notification service in more detail.

There are three concepts related to Notification service:

• Trigger: To define what is triggering the notification and what is the content of the notification.
• Plugin: The delivery method used to deliver the notification message, e.g. email.
• Subscription: The user can subscribe to a notification to be delivered to oneself.

Notifications can be configured and subscribed in Engineering UI which provides two configuration dashboards; One for creating the notification triggers and content, and configuring notification methods, and another for creating subscriptions and checking active subscriptions. First, we have to define the trigger and message content, then create the method for receiving notification and lastly, we can create the subscription of the notification.

Trigger

Trigger is used to define what event will set off the notification, and what message to be sent out. It will listen to events related to the class named in the field Source, and if the events pass the Mask's filter, a message will be sent out to all subscribers.

The trigger class name is NotificationTrigger.

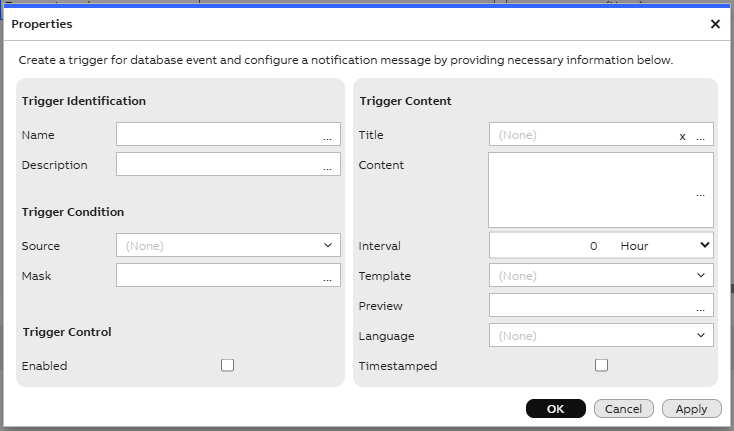

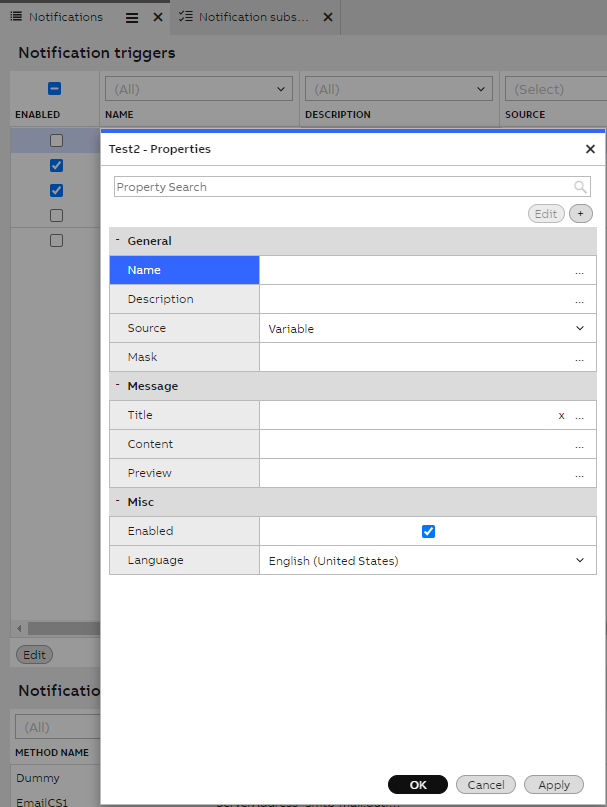

NotificationTrigger properties

Rich text format for Content

The content is in rich text format. Values from trigger source instances can be included in the message using keywords.

To include the value from the trigger source, the property name of the source class could be put in curly brackets form such as {propertyname}. Additional format for the output could be implemented by the ToString method such as {propertyname.ToString("format")}.

For a better understanding of how this works, let's look at the example below.

In this example, we have a Trigger that is subscribing to the class "Variable" with no Mask. This means every change to the cache of this class will trigger the notification message. When the Variable instance as below is added, the Trigger will activate.

The message being sent out will have the title "Example Message". In the Content of the message, the part {Name} will be replaced by the name of the instance ( in our case "AddedVariable",) and the part {ValueMax.ToString("0.000")} will be replaced by the value in the Max column (15.34) with the format "0.000".

With these, the content of the subscription message (see further information below) with locale: "en-US", will be:

"Name is: AddedVariable. Max value is: 15.340."

Escape character: character '' can be used in Content for the parser to read the follow-up character as simple text. Example: to include curly braces "{" "}" in a message, use "{" and "}".

Mask

References: Where String Operator, Where Mask

If we want to add a mask, it could be similar to the following use cases:

• Use case 1: A user who wants to receive a notification when there is a new alarm with priority Critical could create a NotificationTrigger with Alarm Log Row as Source, and set the Mask as following "EventPriority=3". Any Alarm Log Event that does not have EventPriority level 3 (Critical) will be filtered out and does not set off the Trigger.

  Source: "Alarm log row"

  Mask: "EventPriority=3"



• Use case 2: Similiar to the user above, this Trigger subscribe to new alarms but only to the ones related to AmbientTemperature and do not have ReturnTime. The Source and Mask setting is as below: Source: "Alarm log row" Mask: "Property like 'AmbientTemperature' AND ReturnTime=null"

ConfigurationString

❗️

Obsoleted. From Version 5.3_25.04, it is replaced by 3 columns : Interval and Timestamped (NotificationTriggers table), Timezone (NotificationSubscriptions table).

Table below contain possible parameters to be configured. Parameters are to be separated by semicolons ( ; ), each parameter can be assigned by format "keyword=assigned_value". Keywords are case insensitive.

[From Version: 5.3_25.04][From Version: 5.3_25.04] When a trigger instance is created or modified, the NotificationTrigger class checks the ConfigurationString property and modifies the string if needed. If the string does not contain all the keywords, the missing keywords are added with default values. If some keyword is not recognized, that keyword is removed. For example, if the user created a trigger with ConfigurationString = "interval=10000; dummy=1", the string will be changed to: "Interval=10000; TimeStamped=false; Utc=false";

Example:

• "Interval=10000; TimeStamped=true; UTC=false" (Interval 10 seconds with TimeStamp at local time). Or it could be written with short keywords as "i=10000;t=true" (UTC default setting is false). Output notification will have the format below: [Timestamp] Message A [Timestamp] Message B ... [Timestamp] Last message within time interval

Note: If the parameters are duplicated, later value takes effect.

Subscription

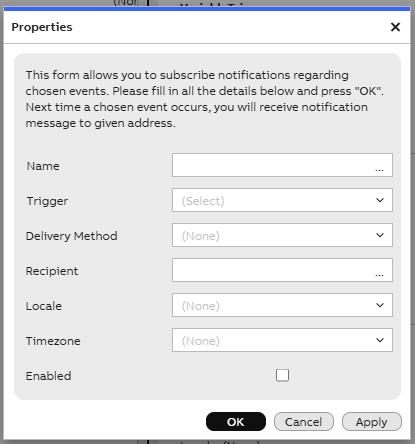

Subscriptions are for subscribing to triggers and define which plugins are used to send out notifications.

The subscription class name is NotificationSubscription.

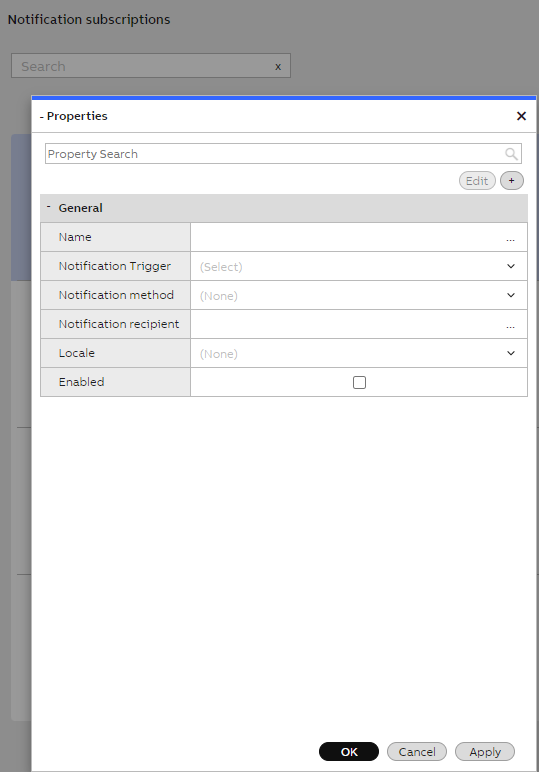

NotificationSubscription properties

Plugin

Plugins are methods for sending notifications. They can be in the form of either C# or DLL. Currently, notification service may be used with Email Plugin. More plugins will be introduced later and detailed instructions added.

Plugins must be located in a sub-folder named Vtrin-NotificationServicePlugins[Version 5.3_25.04][Version 5.3_25.04] (old name NotificationServicePlugins) in Vtrin. Each plugin has its dedicated sub-folder with the same name. The main file of the plugin must be named with the prefix "NotificationServicePlugin_" (e.g.: NotificationServicePlugin_Email.cs). All dependency DLLs need to be located here.

The plugin class name is NotificationPlugin.

The plugin has to implement the interface INotificationServicePlugin

namespace ABB.Vtrin.NotificationService
{
	public interface INotificationServicePlugin
	{
		public void HandleMessage(string title, string message, string configurationstring);
	}
}

The plugin constructor takes in one string parameter, this string is taken from the field ConfigurationString in the Plugin table.

Example plugin below:

namespace ABB.Vtrin.NotificationService
{
	public class ExamplePlugin : INotificationServicePlugin
	{
		private string mConfiguration;
		public ExamplePlugin(string configuration)
		{
			mConfiguration = configuration;
		}

		public void HandleMessage(string title, string message, string configurationstring)
		{
			System.Console.WriteLine("Sending message to: " + configurationstring);
			System.Console.WriteLine("Title: " + title);
			System.Console.WriteLine("Message: " + message);
			System.Console.WriteLine("Configuration: " + mConfiguration);
		}
	}
}

Template [added from Version: 5.3_25.10]

Templates are pre-defined and reusable content for Notification Trigger. The content of the template is in the same rich text format as Notification Trigger's Content. User can create templates and select them in Notification Trigger to be used as message content. Template, if selected, will be prioritized over Trigger's Content property

The template class name is NotificationTemplate.

Installation

Before version [5.3_25.06_RTM], Notification service is not part of the default ABB Ability™ History installation but needs to be installed separately. Please find the installation guide under the services section. Any build post 5.3_25.06_RTM The installation will be taken care automatically.

As a summary of this note, you can also watch a short clip which explains the use, configuration and subscription of notification services HERE

Configurations

SimpleConfig

There are few configuration can be changed during run time with SimpleConfig

Configuration file (5.3_26.01)

Configuration file "Vtrin-NotificationService.dll.config" could be found in the same location with the service file (Vtrin-NotificationService.dll, Vtrin-NotificationService.exe).

AppTrace level could be set here by changing the value field below.

<?xml version="1.0" encoding="utf-8" ?>
<configuration>
	<system.diagnostics>
		<switches>
			<!--Possible values: Off, Error, Warning, Info, Verbose, VeryVerbose-->
			<add name="Vtrin-NotificationService" value="Info" />
		</switches>
	</system.diagnostics>
</configuration>

Redundancy support

Notification service support redundancy installation on multiple nodes. Only one node is in active mode at a given time.

The name of the master token is Vtrin-NotificationService. [from version 5.3_25.02]
