Task Triggers

This display allows you to monitor calculation task triggers. Disabling a trigger on this display, disables it in every calculation it is used. This in mind, possible changes should be done carefully.

Property	Data type	Description
Task	CalcTask	Name of the calculation task.

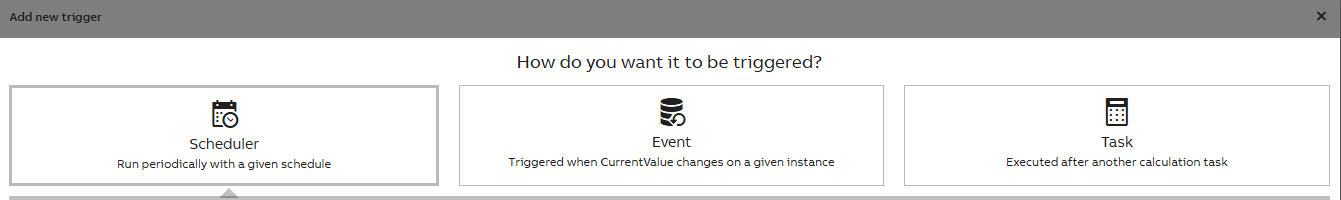

Type	Enum	Name of the trigger used in calculation task as above image shows. See Trigger Settings for more information.
Mapping	CalcMapping	When calculation task is triggered by event, this column shows path/EquipmentModelName/Id.
Triggered By Task	CalcTask	When calculation task is triggered by other task, the triggering task name shows in this column.
Scheduler	CalcScheduler	Shows the scheduler name that is used in calculation task. If scheduler trigger is not used, column shows (None).
Event Properties	String	When event trigger is used in calculation task, this column shows the name of the triggering property/variable.
Disabled	Boolean	Disables the trigger shown in the TriggeredByTask / Scheduler / EventProperties column. E.g., if user disables 1min scheduler shown in "Scheduler" column, this setting disables the trigger in Calc Catalog. With this setting, all calculations using 1 min scheduler trigger will be disabled, meaning calculations will stop running.
Class Level Listener	Boolean	Shows event happening in Class property of any instance. Set to true, if you want to listen inserts in the table/class of your Mapping.
Polling Interval Secs	Double	Checks changes within defined period. Set the interval (seconds) to poll for new inserts in the specific table/class. The default and smallest permitted value is 5.0. If ClassLevelListener is set to true, but database-level events are not listened for the specific table/class, then polling is automatically used. For example, this is the case for the OpcEvent table.
Warnings	String	Warnings on calculations (not process).
