Integrating SQL Database Seeding Into the Automated Workflow

Introduction

This section explains how could the SQL database seeding files be included in the workflow so they are executed automatically during software installation or upgrade.

Equipment Model SQL Update Snippets

Add New Equipment Model

INSERT INTO Equipments(Attribute)VALUES();

Attribute	Type	Required	Description
Id	GUID	Yes	Unique identifier
Name	VARCHAR	Yes	Display name of the equipment
Base(Id)	GUID	No	The parent class from which equipment properties will be inherited.
Abstract	BIT	No	Indicates whether the class is abstract
Command	BIT	No	Indicates whether the class supports commands
Interfaces	VARCHAR	No	Interfaces implemented by the equipment
Image(Id)	INTEGER	No	Icon/image ID

Important: The Id value must be specified when inserting new, as it is not generated automatically.

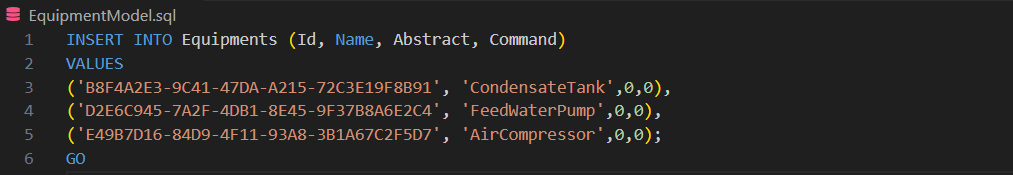

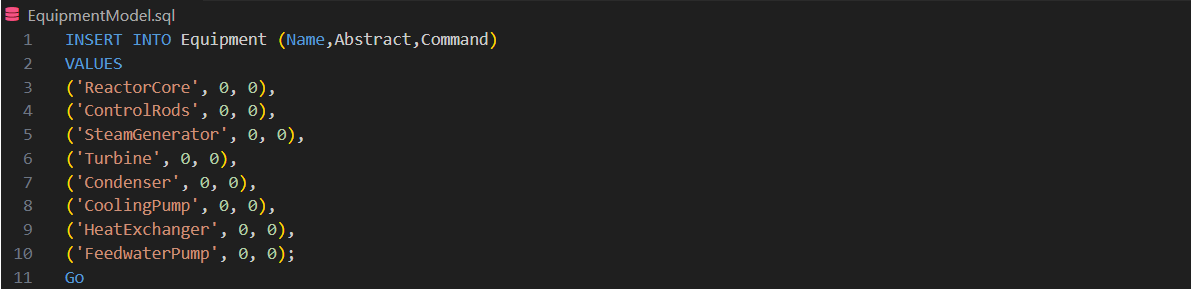

The screenshot is for illustration purposes only. Please replace with your own values.

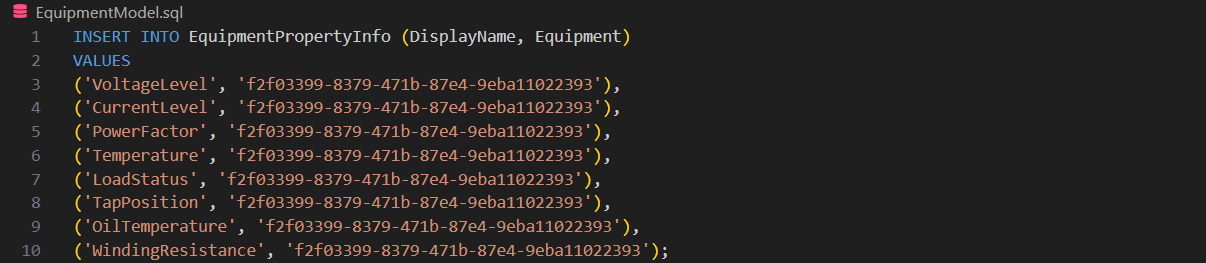

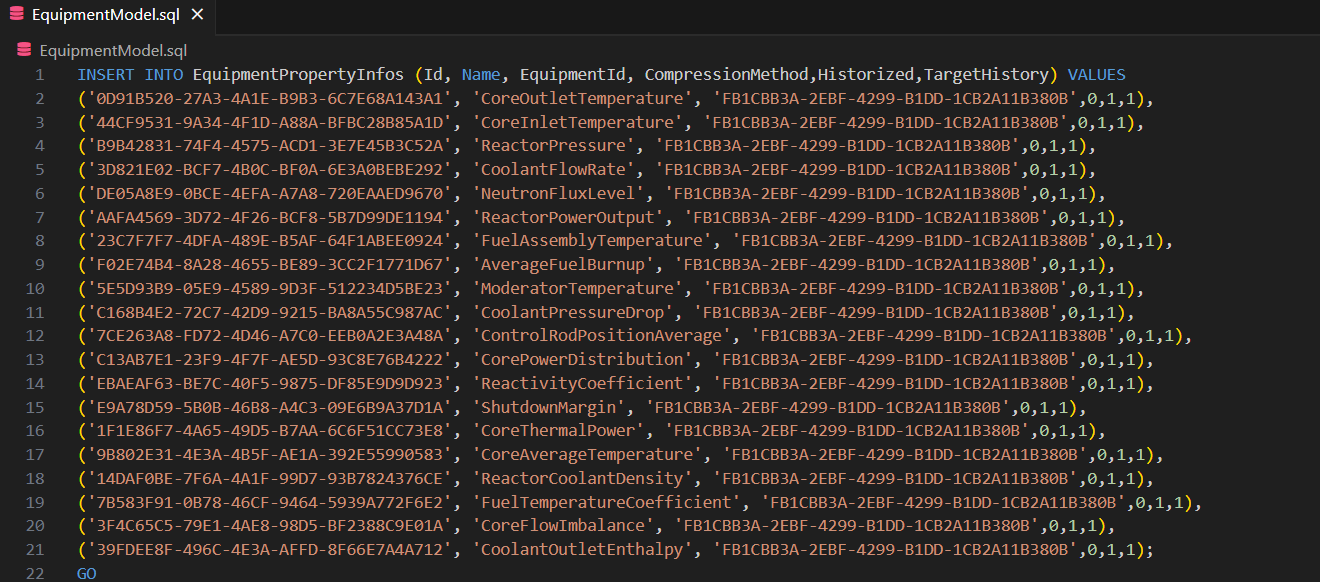

Add New Equipment Property Info

INSERT INTO EquipmentPropertyInfos(Attribute, Equipment)VALUES();

Attribute	Type	Required	Description
Id	GUID	Yes	Unique identifier
DisplayName(Name)	VARCHAR	Yes	Property name
Equipment(EquipmentId)	GUID	Yes	The related equipment
Type	INTEGER	No	Property type
Description	VARCHAR	No	Property description
ApplicationType	INTEGER	No	Application type
ReferenceTarget	VARCHAR	No	Reference target
ValueMin (MinVal)	INTEGER	No	Minimum value
ValueMax(MaxVal)	INTEGER	No	Maximum value
DefaultValue(DefVal)	INTEGER	No	Default value
Unit	VARCHAR	No	Measurement unit
DisplayFormat	VARCHAR	No	Display formatting
Attributes	VARCHAR	No	Attributes flags
CompressionMethod	INTEGER	No	Compression method
CompressionError	DOUBLE	No	Allowed compression error
SubstituteMethod	INTEGER	No	Substitute method on error
SubstituteValue	INTEGER	No	Substitute value
NoiseFilterEnable	BIT	No	Enable noise filter
NoiseFilterFactor	DOUBLE	No	Noise filter factor
TargetHistory	INTEGER	No	Target history configuration
RecordingMethod	INTEGER	No	Recording method
ProcessingMethod	INTEGER	No	Processing method
Historized	BIT	No	Specifies if history data is collected
HistoryCollectionTemplates	VARCHAR	No	History collection templates
Approved	BIT	No	Approval flag
ValueDisplayMin	INTEGER	No	Minimum display value
ValueDisplayMax	INTEGER	No	Maximum display value
MaxArrayLength	BIT	No	Max array length
VariableLengthArray	BIT	No	Variable length array
MaxStringLength	INTEGER	No	Max string length
StreamStatusStoring	BIT	No	Stream status storing
StreamTimestampStoring	BIT	No	Stream timestamp storing
StreamCompression	BIT	No	Stream compression method
StreamPeriodLength	INTEGER	No	Stream period length
StreamPeriodLengthUnit	TINYINT	No	Unit of stream period length
Connected	Boolean	No	Is connected
DiscreteValue	BIT	No	Is discrete value
Events	BIT	No	Event configuration
PreventDisableOnInit	BIT	No	Prevent disabling of the property during initialization.
BinaryTextId	INTEGER	No	Binary text ID
SymbolGroup	INTEGER	No	Symbol group
Source	INTEGER	No	Source reference
UserStatusId	INTEGER	No	User status ID
Inverted	INTEGER	No	Is inverted
IsNullable	BIT	No	Nullable flag
IsVisibleToUserByDefault	BIT	No	Visible to user by default
RangeCheck	BIT	No	Enable range check
RangeCheckManuallyEntered	BIT	No	Manually entered range check
EditMasking	VARCHAR	No	Edit masking options
VisibilityRequirement	VARCHAR	No	Visibility requirement

Important: The Id value must be provided when inserting a new record. It is not generated automatically.

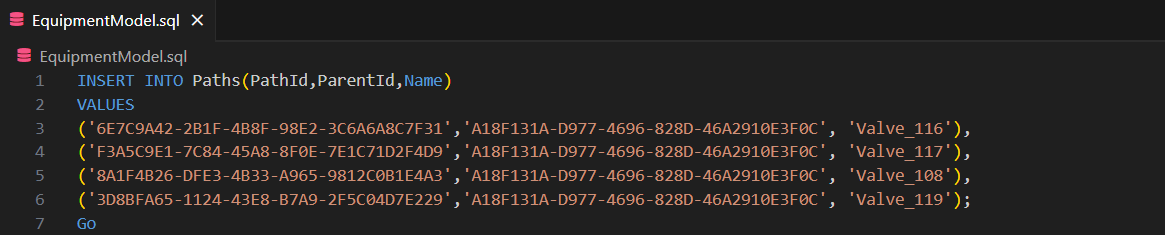

Add New Equipment Instance

INSERT INTO Paths(Parent[ParentId],Attribute)VALUES();

Column Name	Data Type	Required	Description
Id(PathId)	GUID	Yes	Unique identifier for each path record.
Name	VARCHAR	Yes	Full internal path name (often hierarchical, e.g. `Motor.Motor_U2009`).
DisplayName	VARCHAR	No	Human-readable display name (e.g. `Motor_U2009`).
Parent(ParentId)	GUID	Yes	Reference to parent path object.
Equipment(EquipmentId)	GUID	No	Reference to the associated class in equipment(s) table.
References	VARCHAR	No	Optional external or logical reference; often `NULL`.

Important: The PathId value must be provided when inserting a new record. It is not generated automatically.

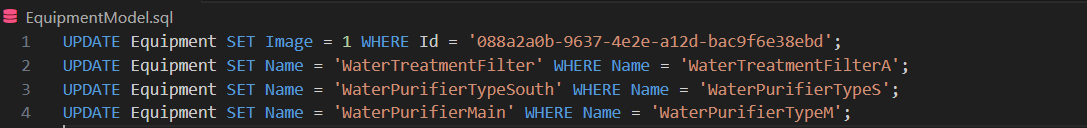

Update Equipment Model

UPDATE EquipmentsSET Attribute ='New Value' WHERE Mask(Name/Id) = '';

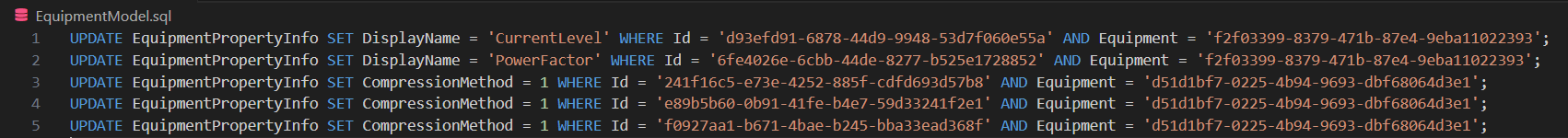

Update Equipment Property Info

UPDATE EquipmentPropertyInfos SET Attribute='New Value' WHERE Mask(DisplayName[Name]/Id) = '' AND Equipment(EquipmentId)='';

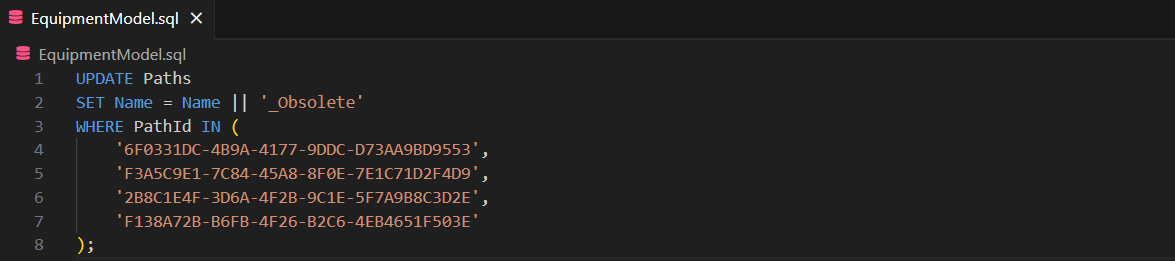

Update Equipment Instance

UPDATE Paths SET Attribute='New Value' WHERE Mask(Name/Id[PathId]);

Disconnect Equipment Property Info

The “Connected” attribute is designed for temporary use to isolate bad or suspicious values originating from unknown sources. A replacement value can then be provided manually until the underlying issue is resolved.

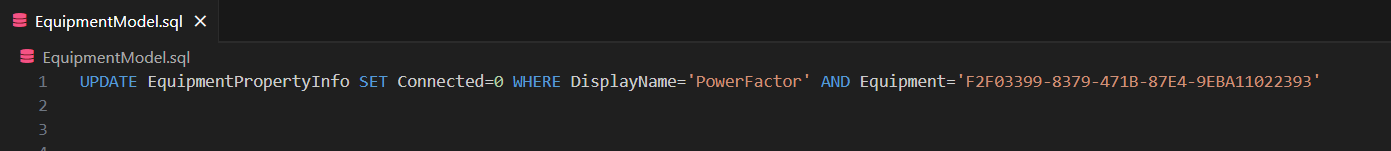

Disconnect specific equipment property

UPDATE EquipmentPropertyInfos SET Connected=0 WHERE Mask(DisplayName[Name]/Id)='' AND Equipment(EquipmentId)='';

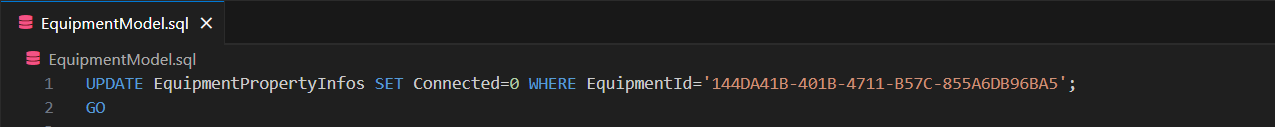

Disconnect all equipment properties associated with the specified equipment class

UPDATE EquipmentPropertyInfos SET Connected=0 WHERE Equipment(EquipmentId)='';

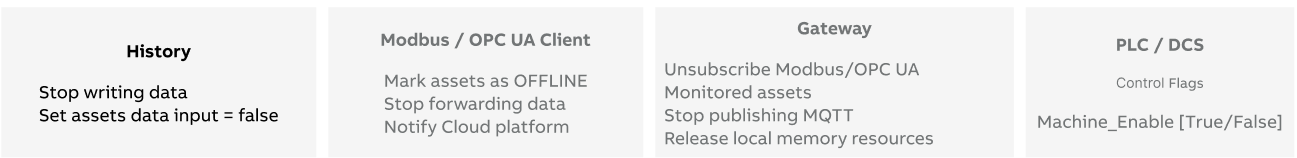

Disable Equipment Instance

When an equipment instance is disabled, only future real-time interactions are stopped, the asset is marked as legacy, and system overhead is reduced. Disabling an instance allows equipment to be reactivated in the future.

This approach is safer for handling equipment that is no longer in operation but whose history remains valuable for data analysis. The instance continues to function as a data source within the application.

Attribute	Data Type	Description
Id	VARCHAR	Unique identifier.
Input	BIT	Flags like 0/1 to enable/disable input.
Output	BIT	Flags like 0/1 for output enabled/disabled.
TargetReference	VARCHAR	Path or ID string to the data source.
Target	VARCHAR	Logical name or label of the data source.
OwnerComponent	INTEGER	Name of the owning component (e.g., “OPC”).
AccessType	TINYINT	Access mode like “Realtime” or “Historical”.
AccessPath	VARCHAR	Additional path information.
RowModificationTime_UTC	TIMESTAMP	Timestamp of last modification in UTC.
TGT:OwnerComponent	VARCHAR	Likely same as OwnerComponent but for linked target.
TGT:AccessType	VARCHAR	Same as AccessType but for linked target.
TGT:RowModificationTime	TIMESTAMP	Timestamp of linked target’s last modification.

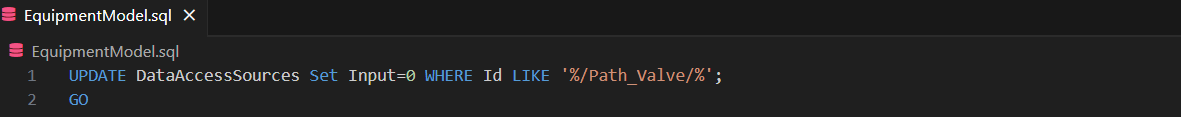

Disable data production for an entire class or path hierarchy

UPDATE DataAccessSources SET input=0  WHERE Id LIKE '%/Path_Name/%';

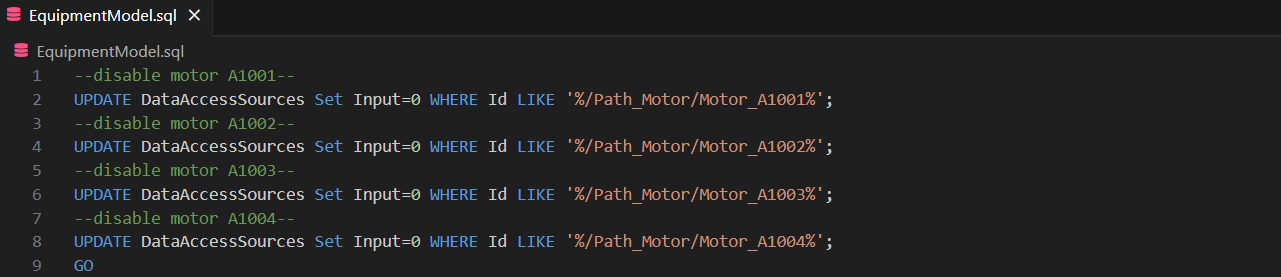

Disable data production for specific equipment instances

UPDATE DataAccessSources SET input=0  WHERE Id LIKE '%/Path_Name/Instance%';

Warning on Naming Conflicts

A disabled instance remains in the system but is inactive. It retains its unique identifier and name, ensuring traceability and potential future reactivation. The name of a disabled instance cannot be reused for a new instance.

Deletion Overview

RTDB won’t immediately shrink files on disk when you delete rows. When old instances are deleted and replaced with new ones, physical disk reclamation is generally not required. In this scenario:

Row deletion removes data logically.
The released storage becomes internally reusable.
New data can reuse this storage without increasing the database file size.

If deletion is expected to reclaim disk space, explicit maintenance must be performed. The following documentation may help: Hard Deletion to Free up Disk Space.

Delete Equipment Model

The deletion cascades to the related EquipmentPropertyInfo and Path (equipment instances). However, the equipment model may still appear in the node tree, even though its instances are no longer available as data source. This action carries significant risk and is not recommended. The preferred solution is to disable it instead.

DELETE FROM Equipment(s) WHERE Mask(Name/Id)IN();

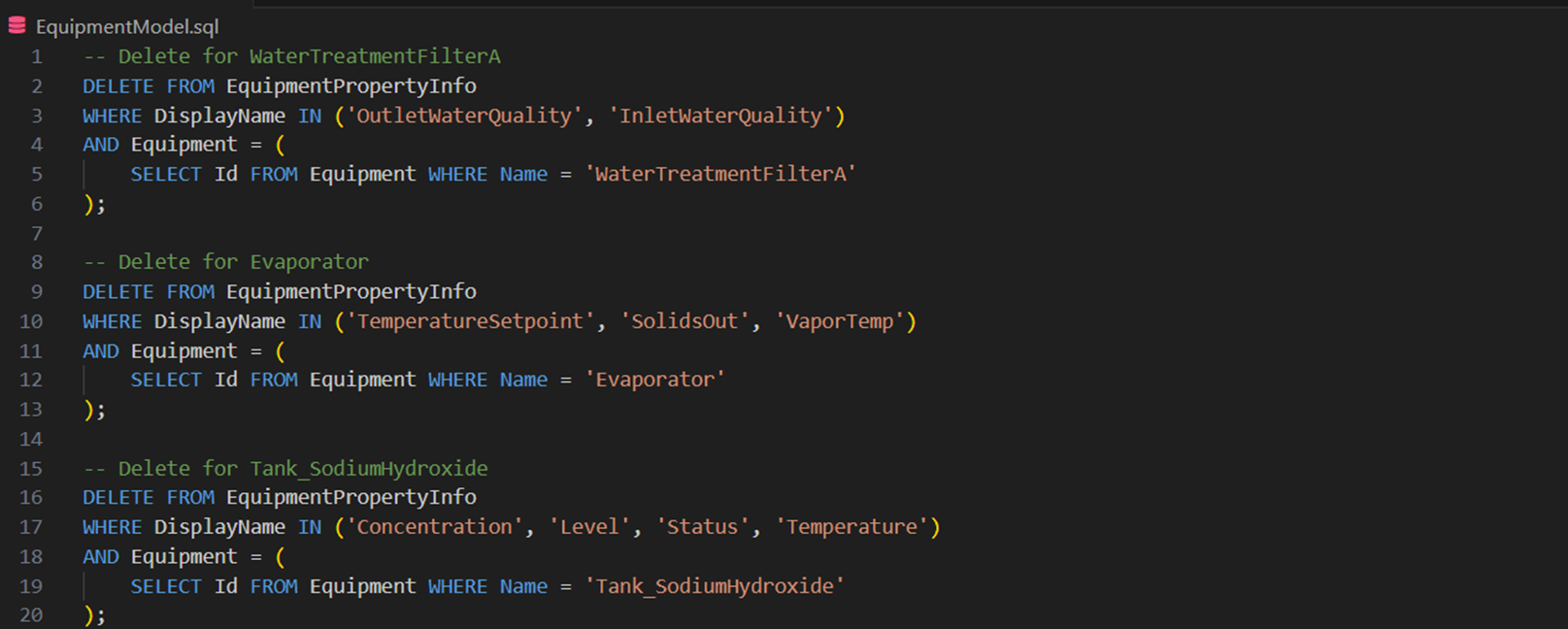

Delete Equipment Property Info

When a property is deleted, the change cascades to the related Path rows (equipment instances). As a result, the affected equipment instances can no longer display the deleted property and its values. This action carries significant risk and is not recommended. The preferred solution is to disable it instead.

DELETE FROM EquipmentPropertyInfo(s) WHERE Mask(DisplayName[Name]/Id)='' AND Equipment(EquipmentId)='';

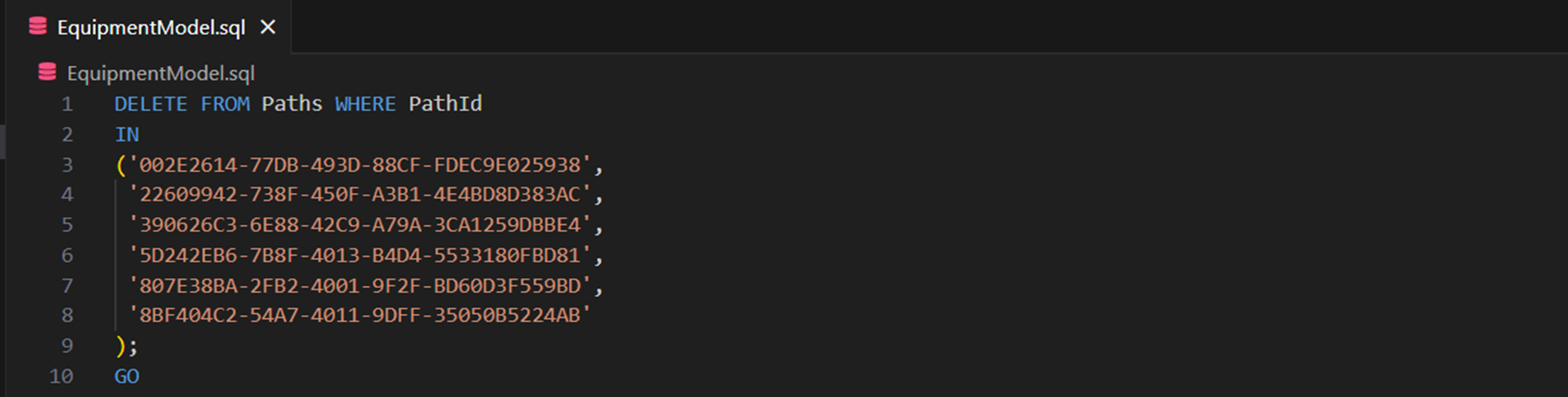

Delete Equipment Instance

The metadata reference (equipment instance row) is removed. The time-series data remains intact, but it can no longer function as data source in the application. This action carries significant risk and is not recommended. The preferred solution is to disable it instead.

DELETE FROM Path(s) WHERE Mask(Name/Id[PathId])IN();

Integrating SQL Execution Into the Automated Workflow

Where to Place Your SQL Files?

Place them in the appropriate component directory:

packagesetup\ComponentName\

RTDB Service Manager automatically detects and executes the SQL Equipment Model updates.

Steps

Manually create a component folder under packagesetup.
Put SQL files inside that folder.
Stop the RTDB and applications.
Start the RTDB.

Done!

Note: Possible causes of SQL execution failure include incorrect table names, invalid ID formats, mismatched columns and values, or the process cannot access the file because it is being used by another process.
